cold storage

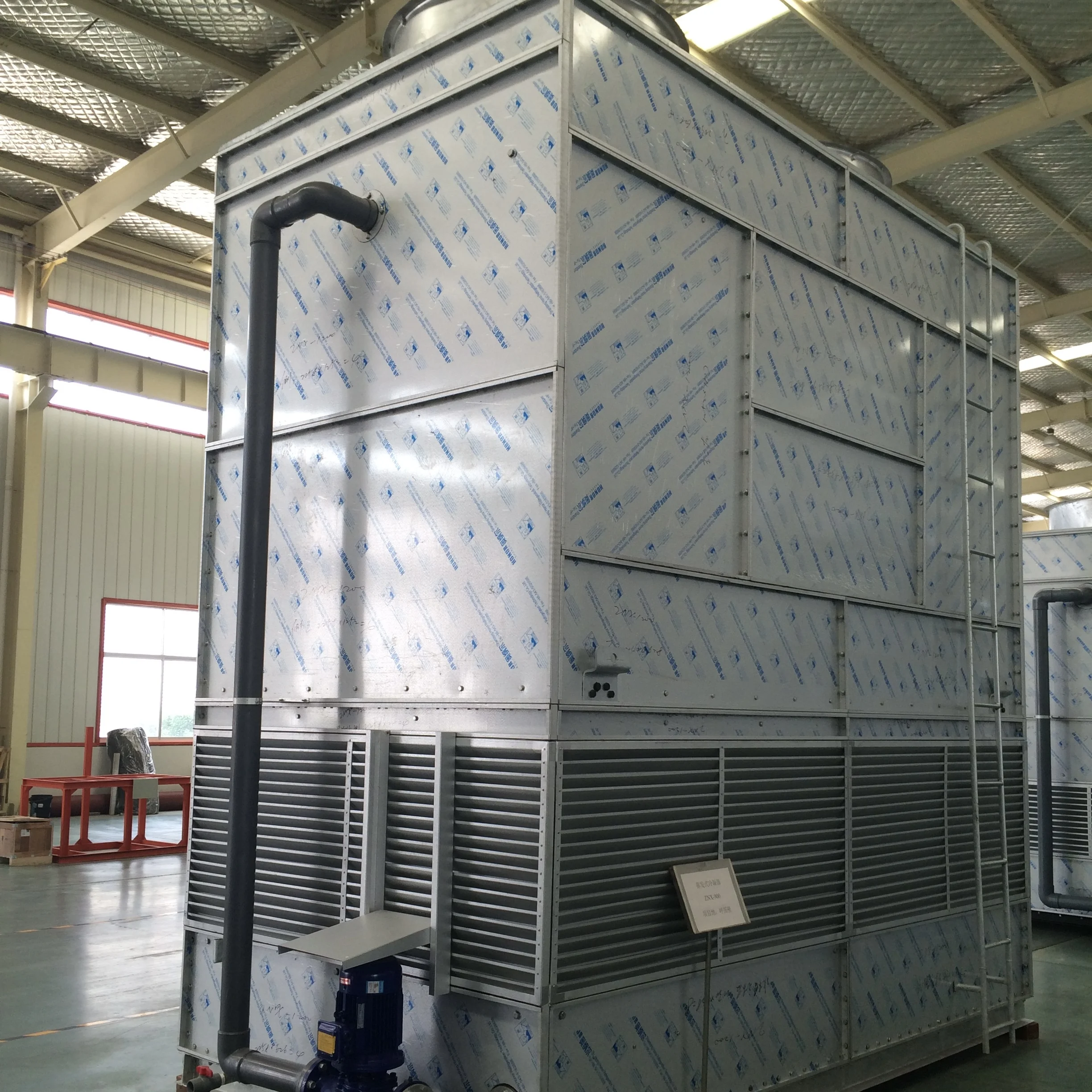

Advanced evaporative condenser with high-efficiency counterflow cooling technology
US$5,500
1-1 set
US$5,300
≥2 sets
Model
Air volume
cooling capacity
Product features
Properties
pictures
Product features
- This industrial evaporative condenser is equipped with a high-performance fan, spray pump, heat exchange coil, inlet and outlet water pipes, demister, air duct and water tank. All evaporative condenser parts in contact with the circulating medium are made of food-grade 304 or 316 stainless steel, and the outer casing is made of magnesium-aluminum-zinc alloy or 304 stainless steel to provide excellent durability and corrosion resistance.
- The evaporative condenser adopts advanced countercurrent working principle. Fresh air enters from the bottom of the evaporative condenser and moves upward, flowing in the opposite direction to the spray water, thereby maximizing contact efficiency. As the water evaporates, the evaporative condenser quickly removes heat from the refrigerant within the coil, providing efficient cooling performance while reducing water and energy consumption.
- Designed for modern refrigeration systems, this evaporative condenser features efficient heat dissipation, low water consumption and reduced operating costs, making it ideal for cold storage, freezers, food processing plants and industrial cooling projects.
- The evaporative condenser adopts a compact counter-flow structure with air intake from all sides, allowing the evaporative condenser to achieve uniform air flow distribution and efficient use of installation space without sacrificing cooling performance.
- Evaporative condensers are designed with a larger height difference between the air inlet and outlet to prevent air flow from short-circuiting. This evaporative condenser design reduces inlet gas humidity, increases cooling capacity, ensures even airflow distribution, and maximizes overall heat dissipation efficiency.
- Optimized fan layout enables the evaporative condenser to maintain balanced airflow throughout the unit. This ensures that the evaporative condenser minimizes dead spots and provides stable and reliable cooling performance under continuous industrial operation.
Properties
Core industry attributes
core selling pointautomatic, high precision
Power (W)6000
noise30-34dB
Control methodremote control
Voltage380 V
Cooling methodcountercurrent
Important attributes
Voltage
380 V
Cooling method
countercurrent
Power (W)
6000
Material
Metal
core components
engine, motor, pump
Mechanical test report
Available
Warranty
1 year
Factory video inspection
Available
Control method
remote control
noise
30-34dB
core selling point
automatic, high precision
Origin
Shandong, China
Weight (KG)
500
brand name
One-stop
Dimensions (length*width*height)
2850*1500*2800
Product name
evaporative condenser
temperature control
-40℃ to 0℃
water flow
60 cubic meters/hour
shape
square
Application
Industrial cooling system
Material
Stainless steel 304
size
2850*1500*2800/customized
Elliptical tube wall thickness
1.2mm or 1.5mm
Freezer type
Liquid nitrogen evaporation freezing
color
silver
Packaging and shipping
sales unit
single item
Individual package size
300X200X300 cm
Gross weight of a single product
500.0 kg
pictures
