stainless steel fixtures

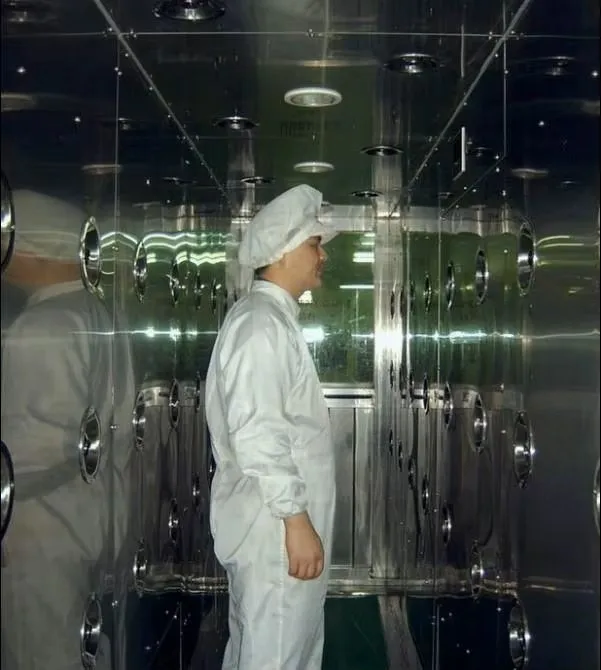

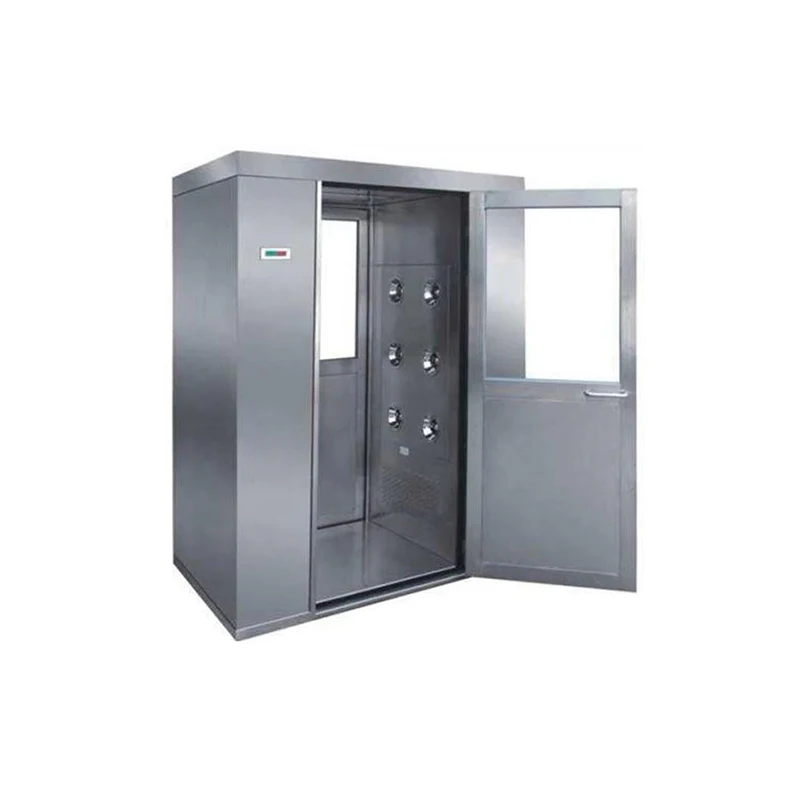

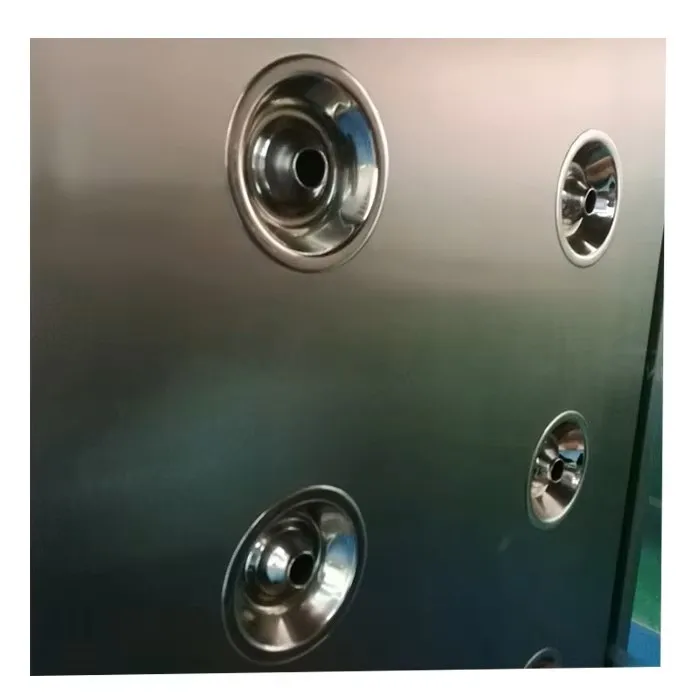

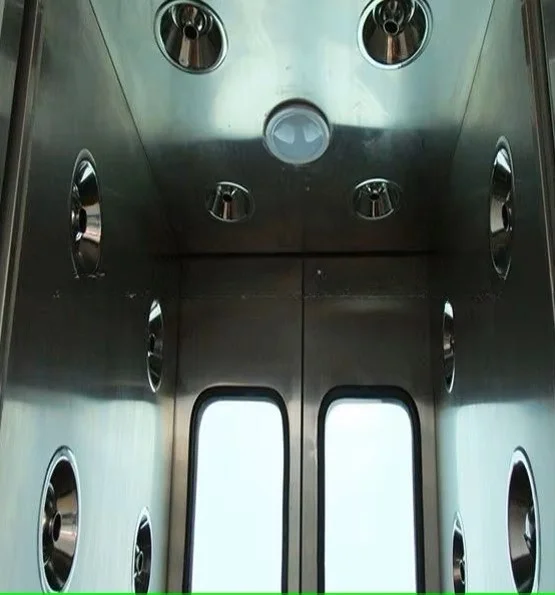

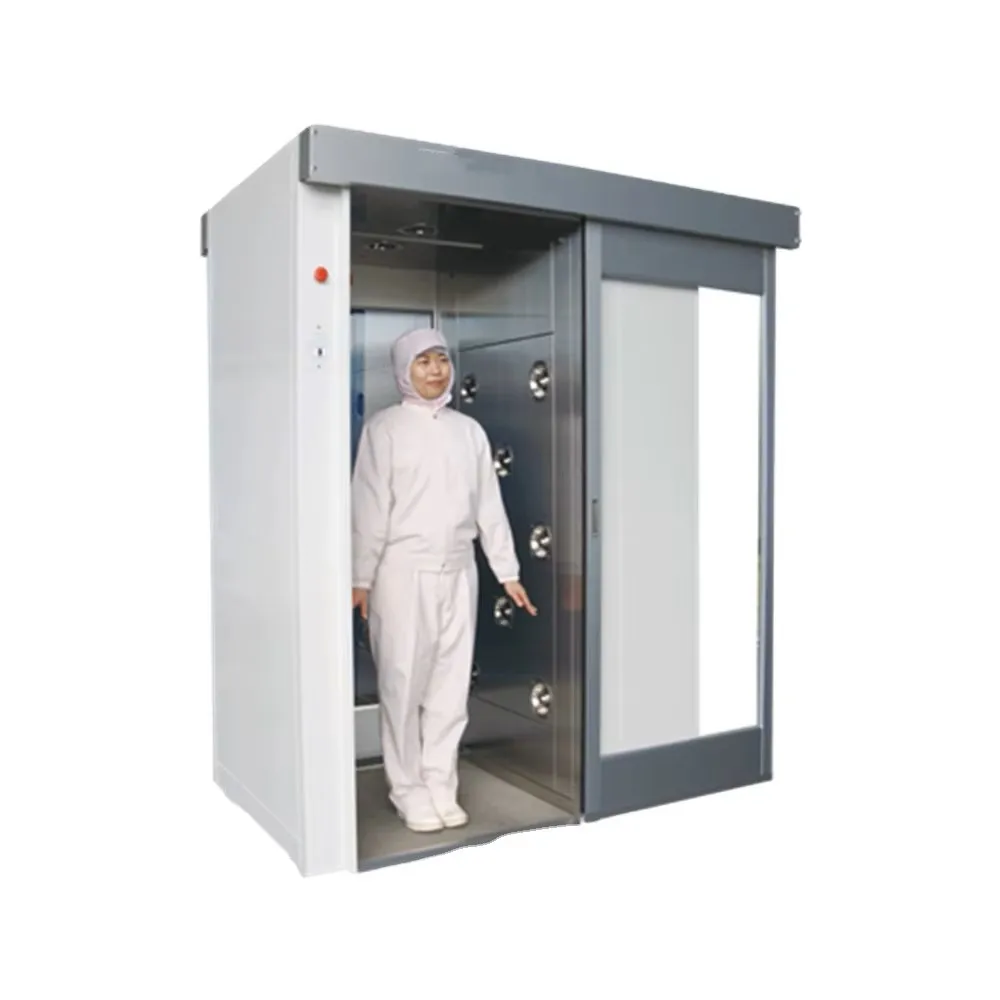

Automatic stainless steel air shower room for food industry clean rooms and contamination control
US$2,500
1-1 set
US$2,300
≥2 sets
Model
Product features
Properties
pictures
video
Product features
- Tailor-made construction includes an air brake system, padded entry and modular integration into existing cleanroom workflows.
- Model: Dimensions Number of fans Power Number of Air Nooozele.
- Automatic air shower: 1100*1800*2300 1515 20.
- 2100*1800*2300：3015 40。
- 2900*1800*2300：4015 60。
- An efficient spare parts supply chain ensures minimal downtime and long-term operational continuity.
- Core Features: Photoelectric sensor automatic operation, recirculating air flow design, electronic interlocking doors, barriers, professional design flexibility, product specifications.
- Air showers are high-performance purification systems designed to act as a critical buffer between clean and non-clean areas. It is designed to effectively remove surface dust, particles and other contaminants before people, carts or equipment enter a controlled cleanroom environment. This is achieved by a high-velocity jet of filtered air, ensuring that only thoroughly decontaminated subjects are allowed to proceed.
- Installed at the entrance to a clean room, air showers play a vital role in reducing the risk of particulate contamination entering the controlled environment, thereby maintaining the integrity of the clean room operation.
- The system features electronically interlocked doors that ensure a controlled entry and exit sequence and act as an airlock to prevent simultaneous opening of doors. This greatly reduces the possibility of cross-contamination and maintains pressure differentials between areas. Designed for efficiency, safety and ease of use, air showers feature durable stainless steel or powder-coated steel panels, a user-friendly control interface, and customizable blow times and airflow speeds to meet specific operating requirements.
Properties
Core industry attributes
Voltage380 V
Power (W)3 kW
core componentsengine, bearing, motor, gear
Warranty1 year
Mechanical test reportAvailable
Factory video inspectionAvailable
Important attributes
Voltage
380 V
Power (W)
3 kW
core components
engine, bearing, motor, gear
Mechanical test report
Available
Warranty
1 year
Factory video inspection
Available
Origin
Shandong, China
Weight (kg)
500
brand name
One-stop
Product name
air shower room
Material
304 stainless steel
power supply
3KW
size
2100*1800*2300, customized
Air shower time (s)
0-99s adjustable
Application scope
Clean room entrance
Function
Sterilize
thickness
2.0mm
Provide after-sales service
Online support
Package
Standard wooden box
Packaging and shipping
sales unit
single item
Individual package size
300X200X300 cm
Gross weight of a single product
500.0 kg
pictures
video
