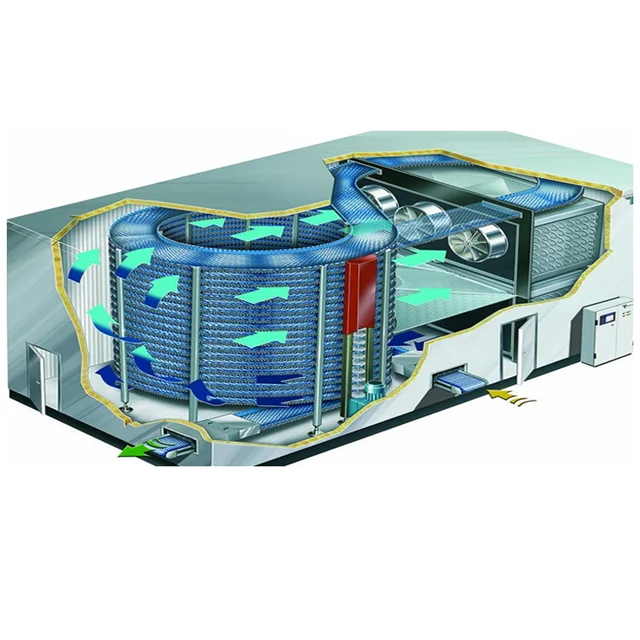

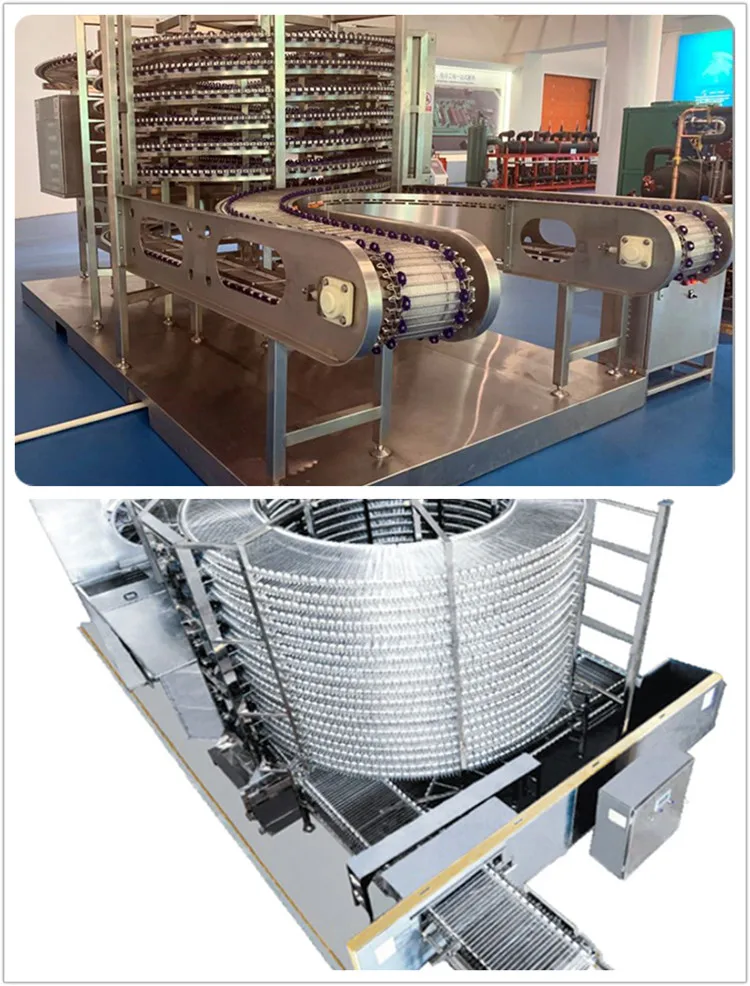

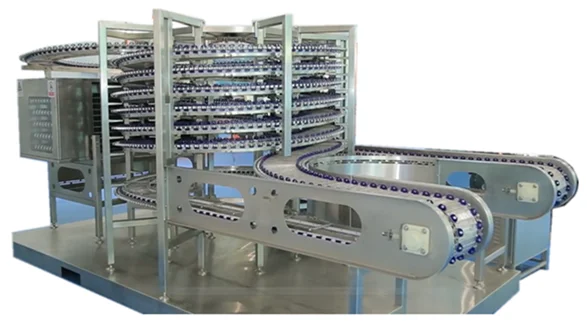

Customized personal rapid freezing spiral IQF freezer for slaughterhouses
US$17,250
1-1 set
US$17,200
≥2 sets
Model
Refrigeration capacity
Customization options
- Customized logo
Product features
Properties
pictures
video
Product features
- Product name:: Customized single quick-frozen spiral IQF freezer for slaughterhouses.
- Dimensions: 7300 × 600 × 800 mm.
- Refrigerated:: R507.
- Materials:: 35-40g/pc cut meat.
- Voltage:: 440-380V, 3p.
- Function:: * Pre-cooling and freezing of aquatic products, meat, prepared foods, etc.

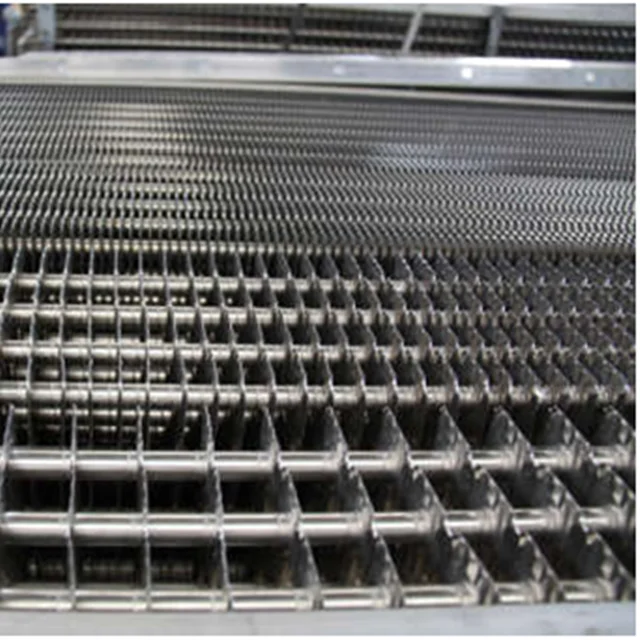

- Advantages:: * Fast processing speed * Good input on the low side and good output on the low side * Extend the service life of the mesh belt * Solve the problem of mesh belt flipping * No rotating cage.
- Design and production standards:: * Comply with HACCP requirements, leaving no dead ends to ensure food hygiene and safety * Ensure that the company obtains QS, HACCP certification, etc.
- Structure:: * The structural frame, carrier tape bracket, spiral bracket, air baffle and drive shaft are made of 304SUS * Can meet the requirements of hygiene and durability.
- Design advantages:: * The steel frame keel structure is embedded inside the SUS base, which can effectively prevent the equipment from sinking under load; * Bilateral drainage ditches are conducive to frost and clean drainage.
Properties
Core industry attributes
typespiral freezer

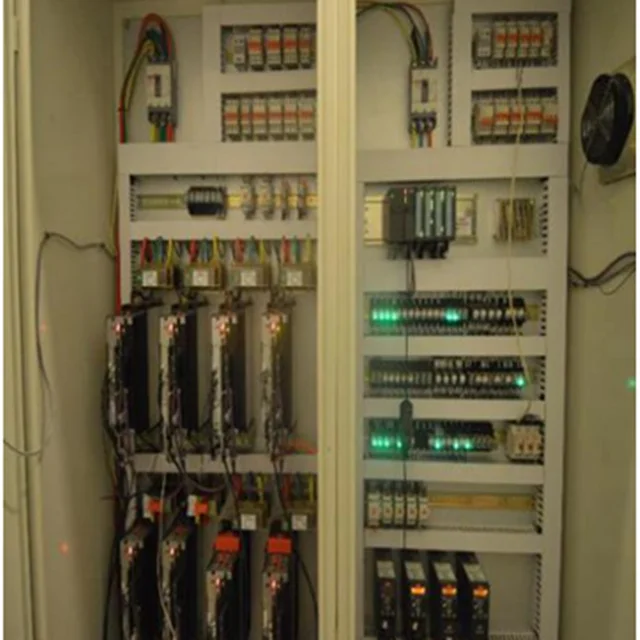

core componentsPLC, bearings, motors, gears
Temperature control type-40 ℃ to 0 ℃
core selling pointHigh productivity
Warranty1 year
Mechanical test reportAvailable
Important attributes
type
spiral freezer
Temperature control type
-40 ℃ to 0 ℃
Voltage
380V
Warranty
1 year
Mechanical test report
Available
Factory video inspection
Available
core components
PLC, bearings, motors, gears
core selling point
High productivity
Power (W)
2.2kw
Origin
Shandong, China
Weight (KG)
1500
brand name
onestop
Dimensions (length*width*height)
7300*600 * 800mm
Product name
Customized Personal Quick Freezing Spiral IQF Freezer Butcher
usage
quick frozen
Material
Stainless steel
suitable for
butcher knife
Capacity
500kg/h
refrigeration
R507
Advantages
automatic
Function
frozen meat cuts
compressor
Imported brands
Provide after-sales service
Engineers can service machinery overseas
Packaging and shipping
sales unit
single item
Individual package size
500X500X500 cm
Gross weight of a single product
1500.0 kg
