cold storage

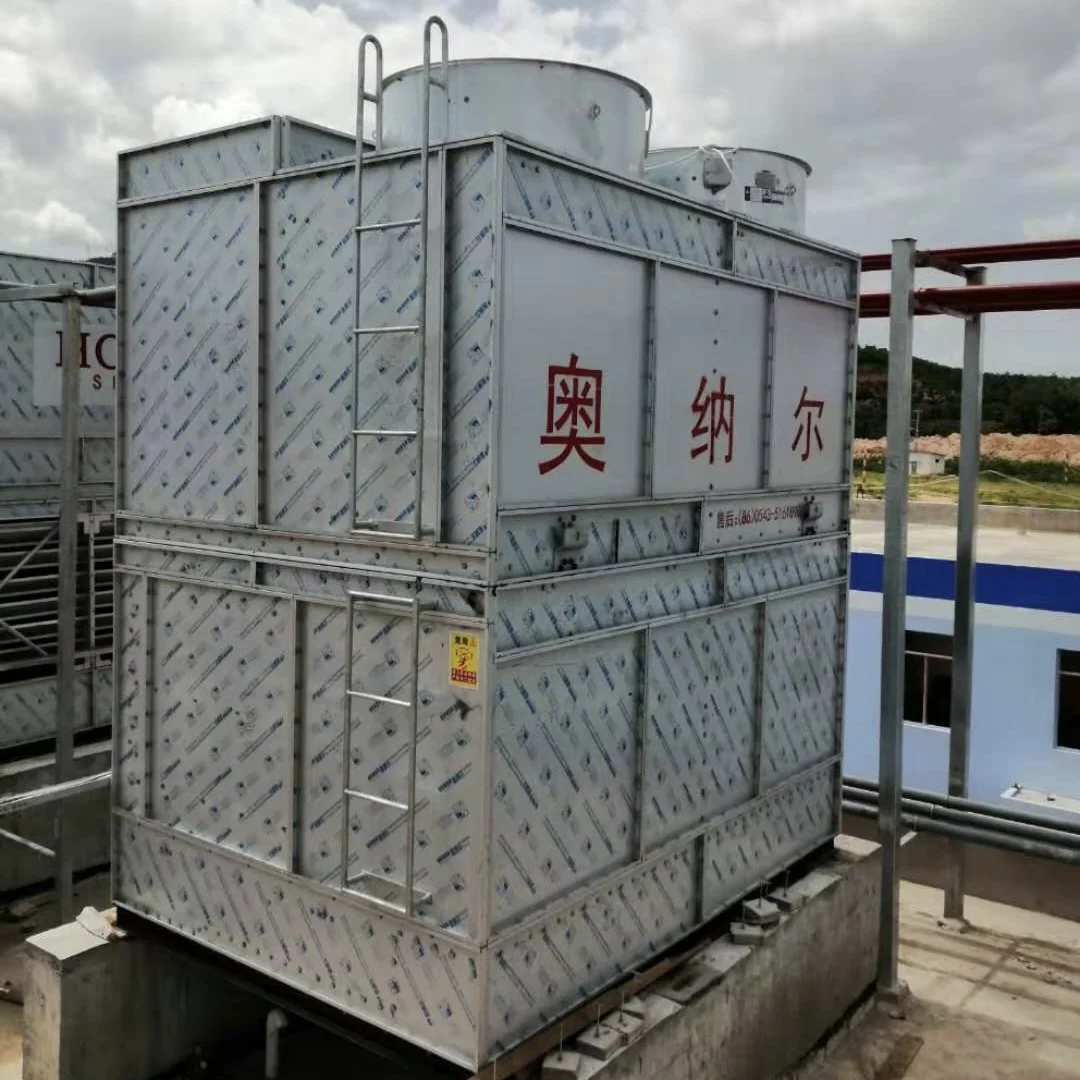

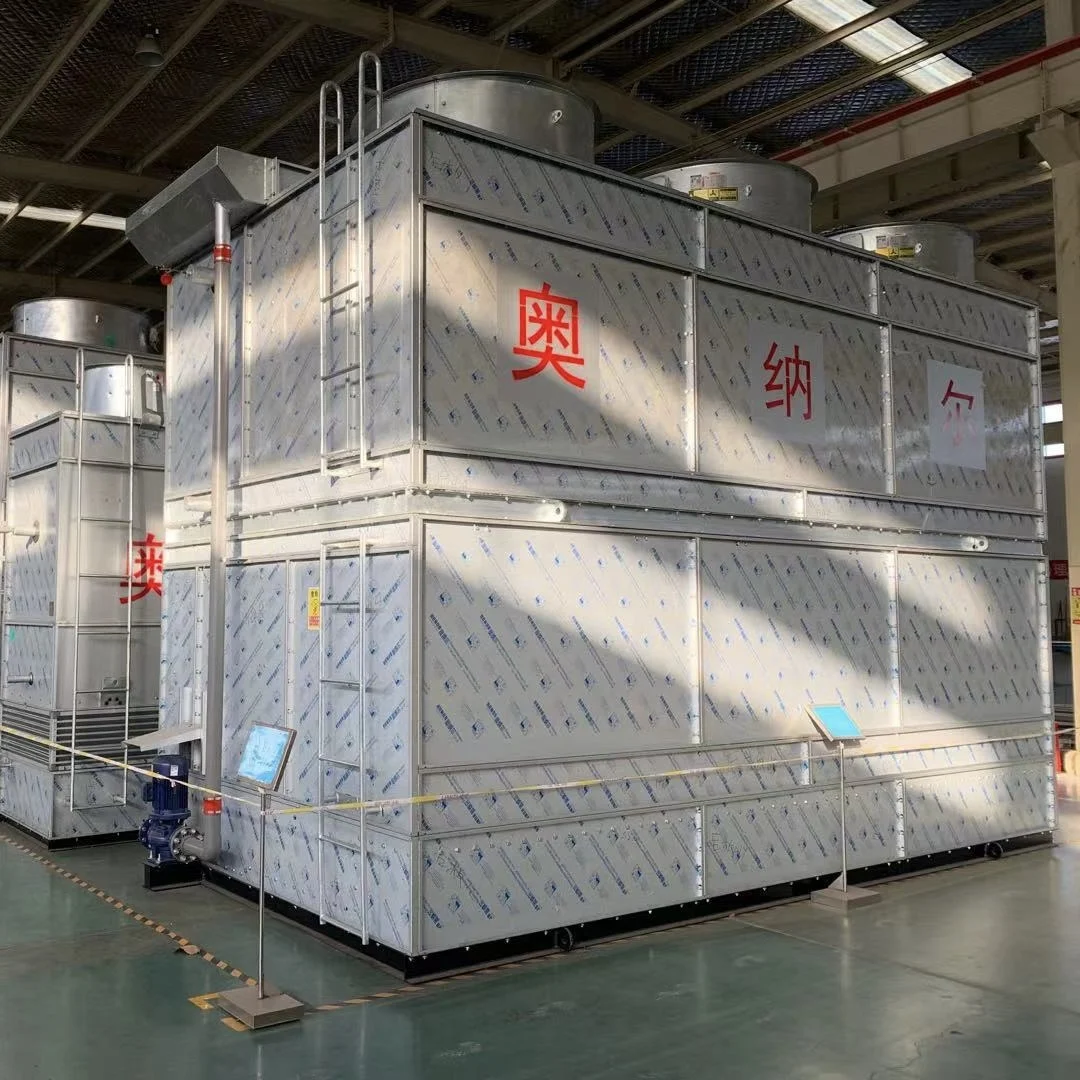

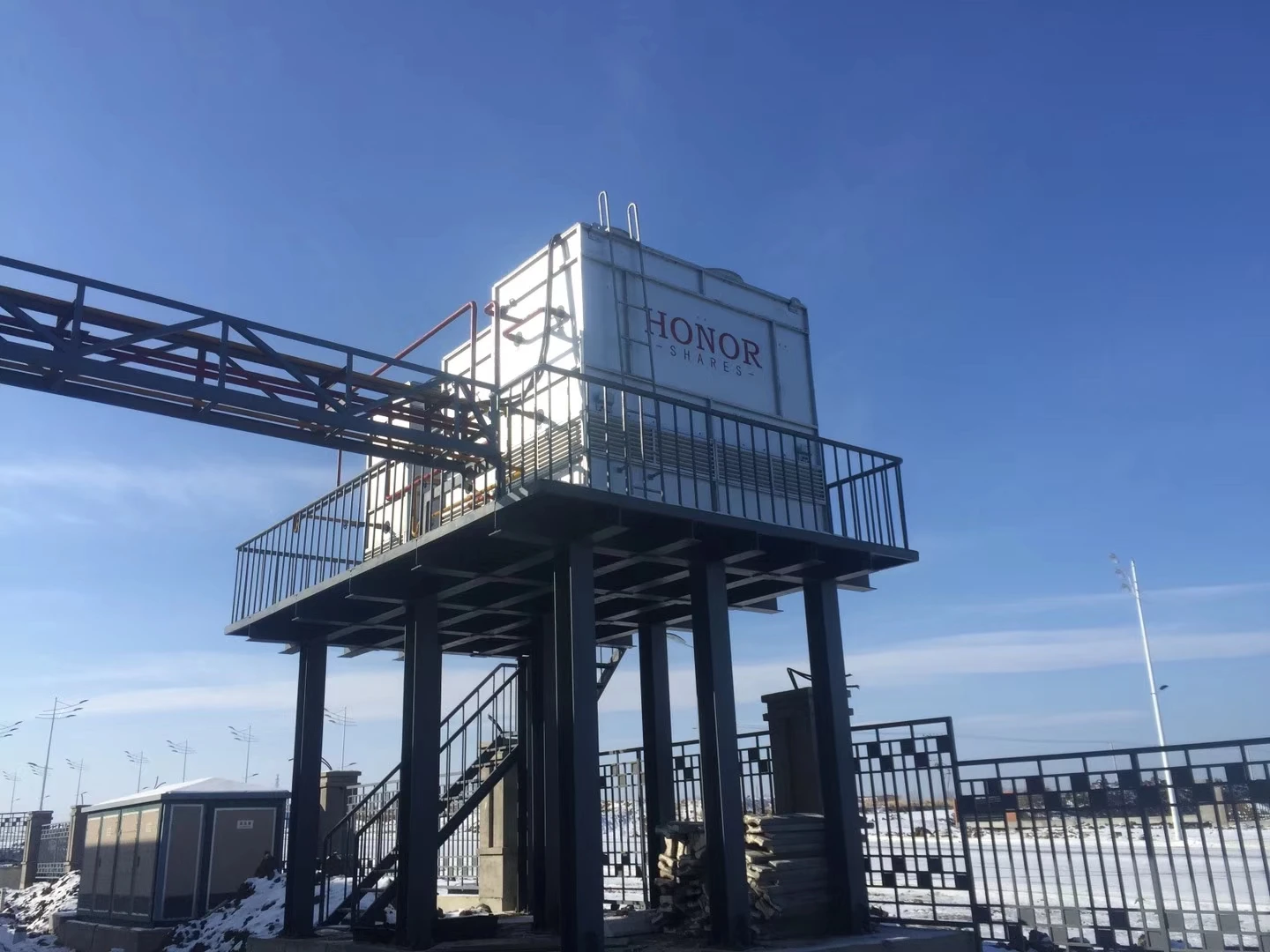

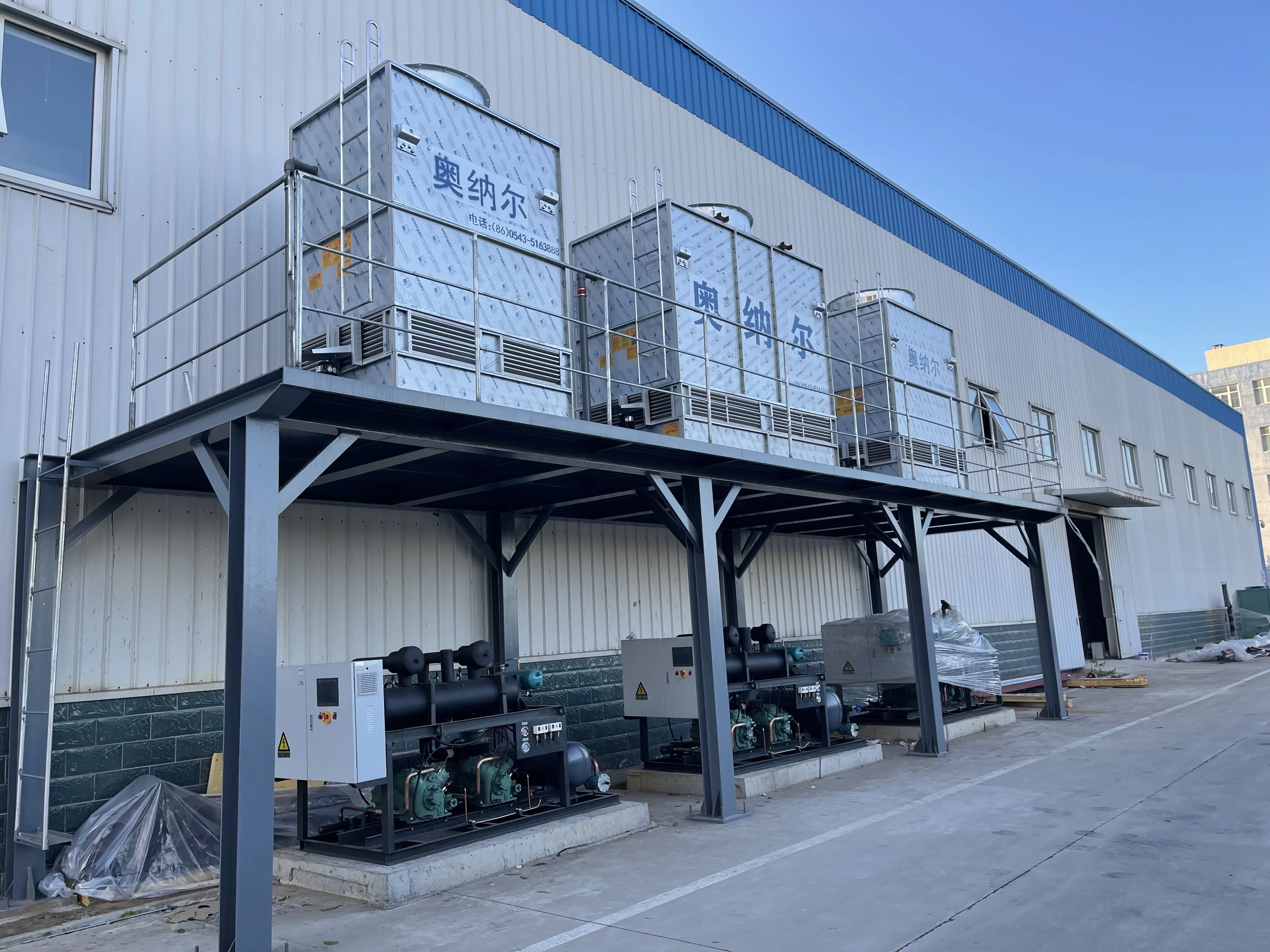

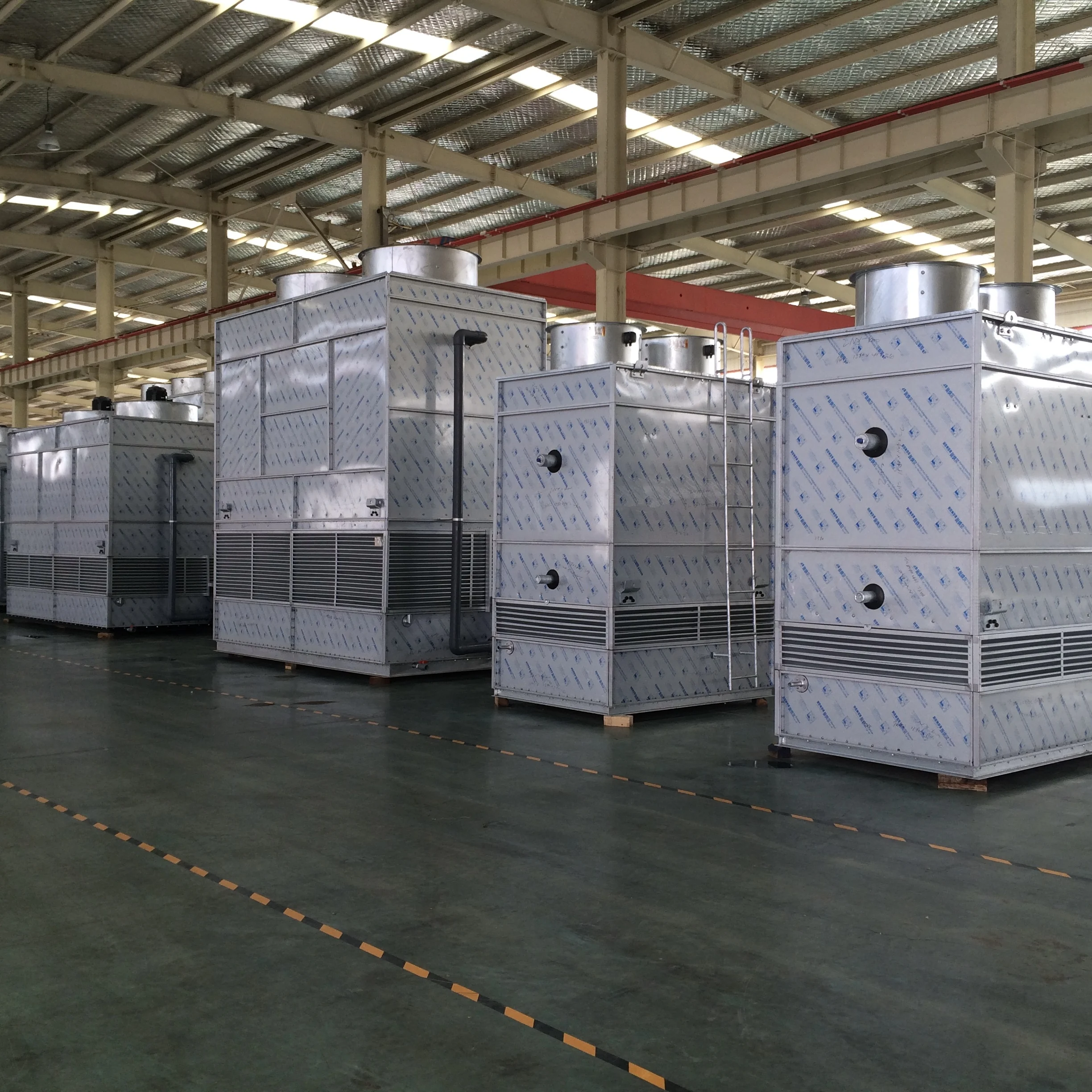

Energy-saving evaporative condenser for large refrigerator and freezer applications
US$28,000
≥2 sets
Model
Refrigeration capacity
Customization options
- Dimensions (length*width*height)
Product features
Properties
pictures
Product features
- Working principle: Cold fluid (e.g., cooling water) and hot fluid (e.g., refrigerant vapor) enter the condenser at the same end and flow in the same direction while exchanging heat.
- Outlet temperature limit: The outlet temperature of the cold fluid cannot theoretically exceed the outlet temperature of the hot fluid, which limits its maximum heat transfer efficiency.
- High initial heat transfer: The heat transfer rate at the inlet is very high due to the maximum temperature difference.
- Relatively Simple Construction: The tube arrangement in some tube-and-shell designs can be more straightforward. Advantages: Ideal for applications where outlet temperature requirements are not critical, or where high thermal stress due to large initial temperature differences is an issue.
- Typical applications: Some shell and tube heat exchangers, specific waste heat recovery devices.
- Working principle: Hot and cold fluids enter the condenser from opposite ends and flow in opposite directions while exchanging heat.
- Efficient heat transfer: Maintaining a relatively uniform and large average temperature difference across the entire heat transfer surface, resulting in higher efficiency than parallel flow.
- Superior temperature achievement: The outlet temperature of the cold fluid can be close to the inlet temperature of the hot fluid, allowing for deeper cooling and higher heat energy recovery.
- Energy and cost savings: Higher efficiency means less heat transfer area required for the same duty, or lower coolant flow, resulting in lower long-term operating costs.
- Advantages: High efficiency, energy saving, able to achieve lower condensation temperature or higher heating temperature. It is the first choice for most industrial applications.
Properties
Core industry attributes
typetunnel freezer
core componentsbearings, gearboxes, motors, gears
Compressor brandBitzer
refrigerantR-404A, R-410A
Temperature control type-20 ℃ to 0 ℃
door typemultiple doors
Important attributes
type
tunnel freezer
Temperature control type
-20 ℃ to 0 ℃
refrigerant
R-404A, R-410A
Voltage
380 V
Compressor brand
Bitzer
Warranty
1 year
Number of pallets
other
door type
multiple doors
Mechanical test report
Not available
Factory video inspection
Not available
core components
bearings, gearboxes, motors, gears
core selling point
Automatic, easy to operate, high productivity
Power (W)
50HZ
Origin
Shandong, China
Weight (KG)
600
brand name
OSE
Dimensions (length*width*height)
Customized
country of origin
Shandong, China
frozen products
Aquatic products/meat/shaobing
Power configuration
380V/3ph/50HZ
Post-warranty service
Video technical support
type
spiral freezer
temperature control
-45 ℃-0 ° c
Warranty
1 year
Material
Stainless steel 304
app
Quick frozen food
key selling point
Environmentally friendly, automatic, competitive price
Packaging and shipping
sales unit
single item
Individual package size
3000X2500X2200 cm
Gross weight of a single product
1500.0 kg
