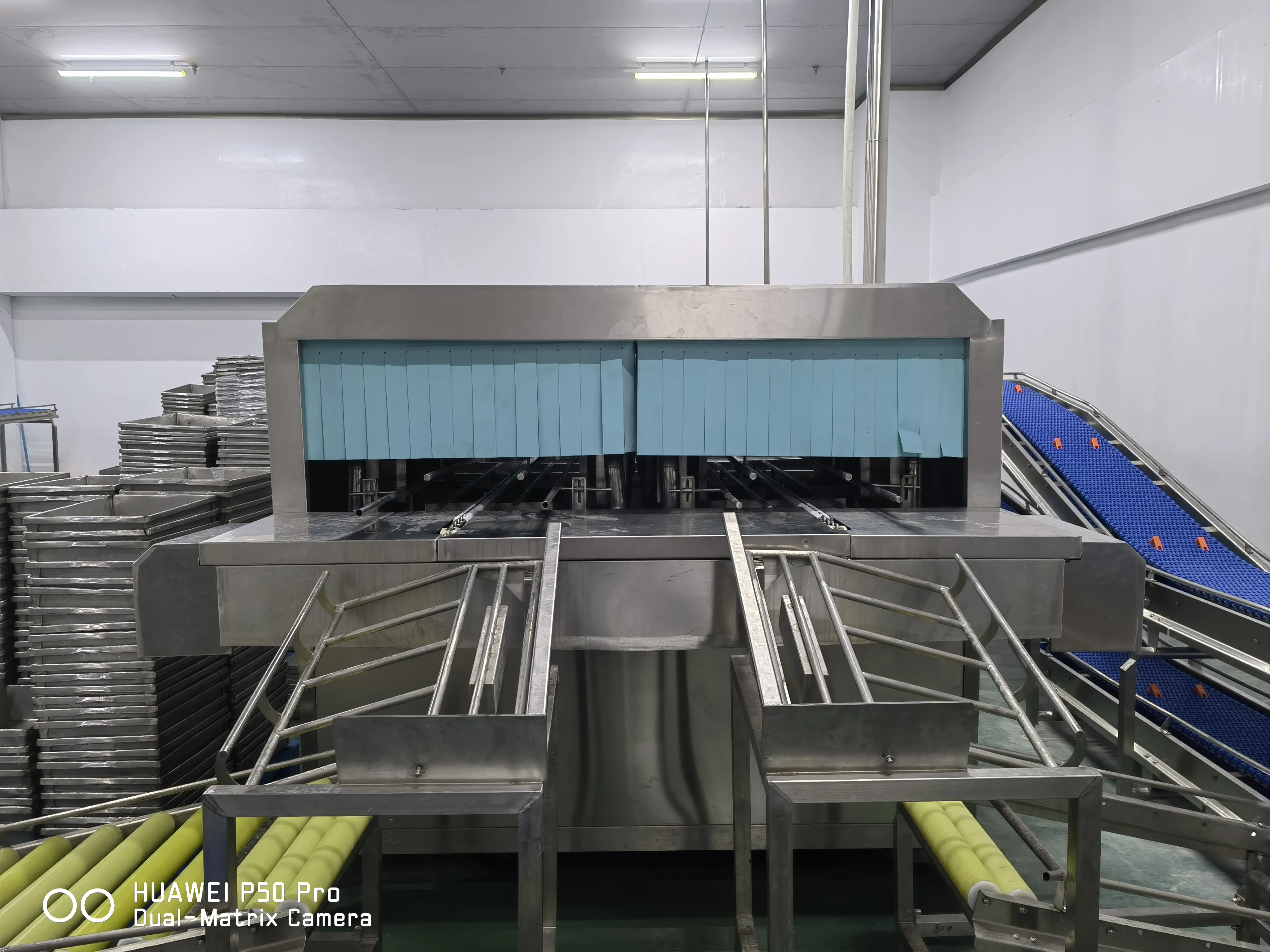

Highly efficient automatic tray basket cleaning machine for meat processing
US$20,000
1-1 set
US$19,000
≥2 sets
Power (W)
Product features
Properties
pictures
video
Product features
- Full SUS304 Stainless Steel Construction: Entirely made of high-grade stainless steel, compliant with international food safety and hygiene standards.

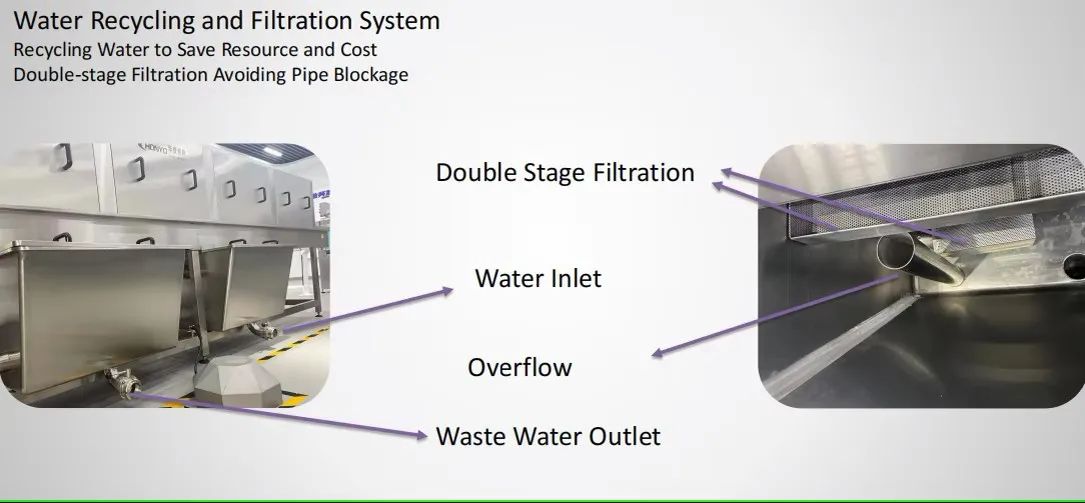

- Advanced Filtration System: Multiple filtration stages effectively remove debris and contaminants, ensuring wash water stays clean for longer.
- Integrated process: combines cold water washing, hot water washing and high-speed air drying in one continuous system.

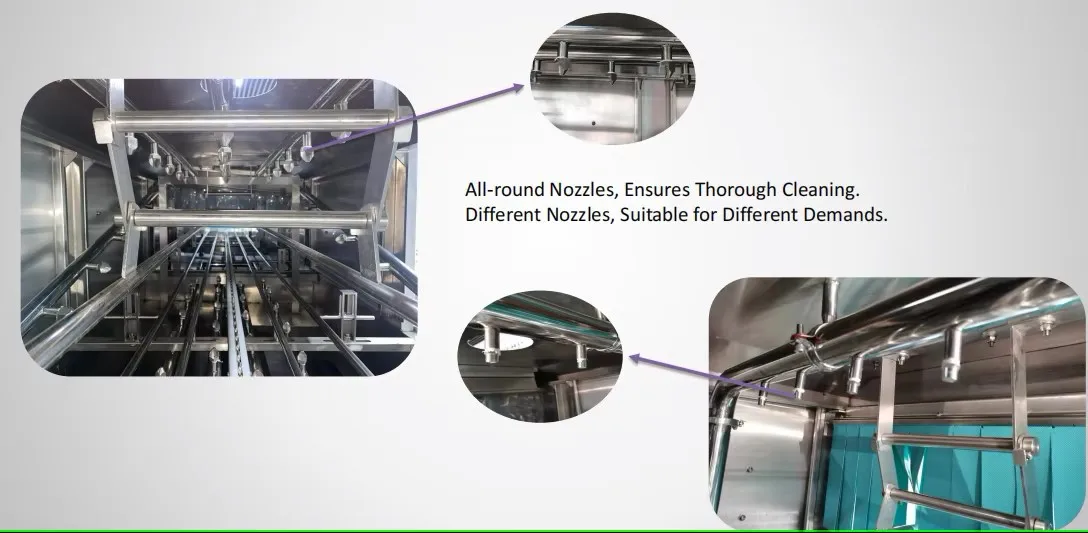

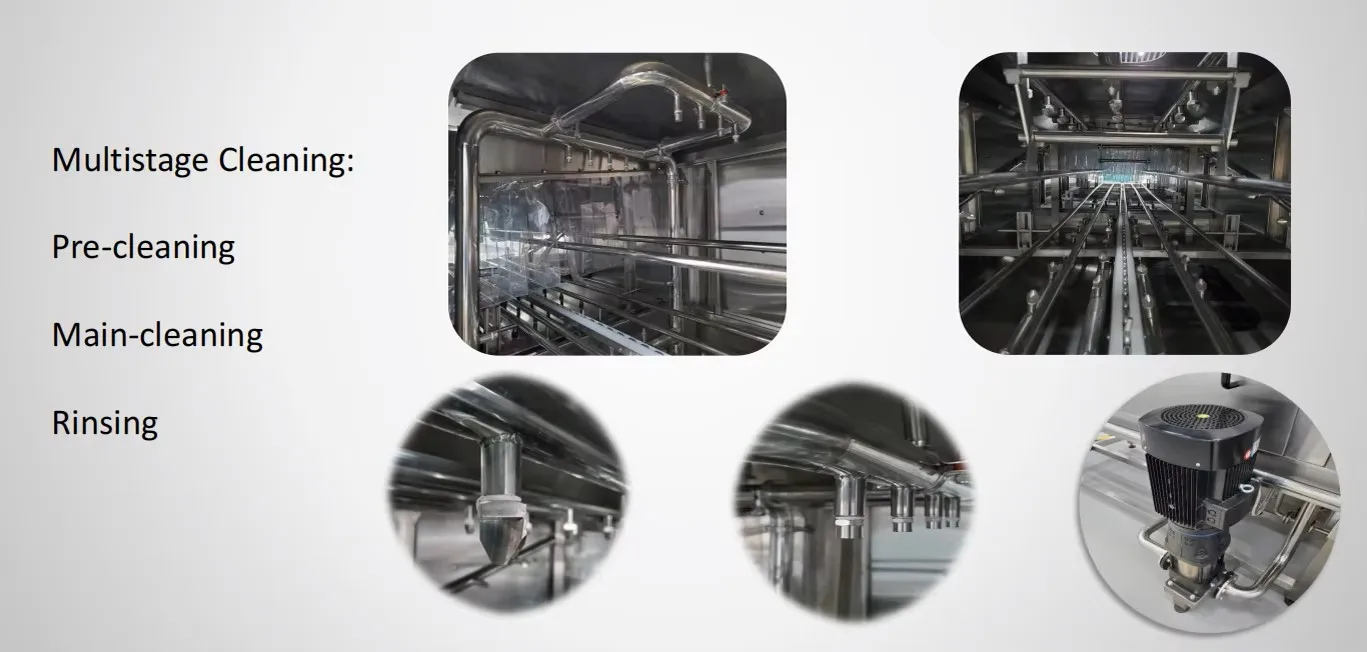

- 360° Multi-directional Spray: Adopts a 3D four-way nozzle configuration to ensure that every corner of the cage is thoroughly disinfected.
- Professional air-drying design: Customized air ducts ensure maximum moisture removal, making the pallet boxes immediately reusable.

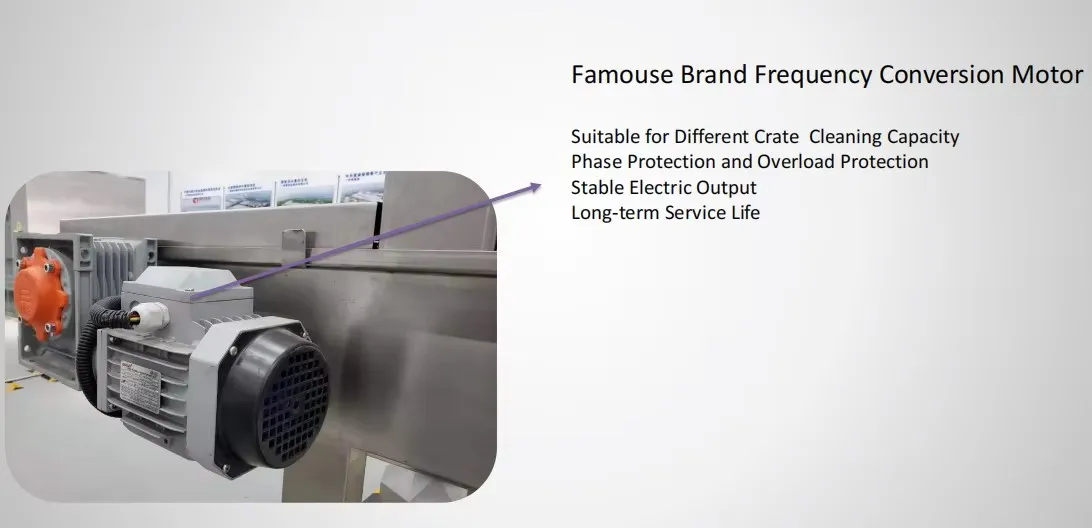

- Variable Frequency Control: Adjustable conveyor speed and motor frequency allow you to tailor output to your specific production volumes.
- Automatic resource management: Automatically control water level and temperature to minimize energy consumption and water waste.
- Double-circuit water system: independent pipeline design for dirty water and clean water to maximize the economic recycling of the water tank.
- Comprehensive electrical protection: Equipped with waterproof electrical enclosure, overload protection, and leakage protection to ensure the safety of operators in humid environments.
- Stable operation: Unique track design prevents paper jams and ensures pallets pass through the machine smoothly.

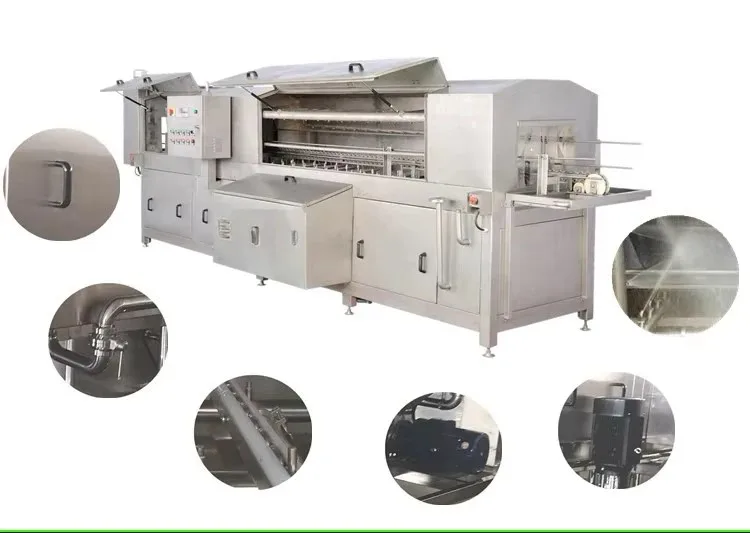

- Snap-on pipe installation: Quick-release buckle design makes it easy to disassemble, clean and maintain internal pipes.

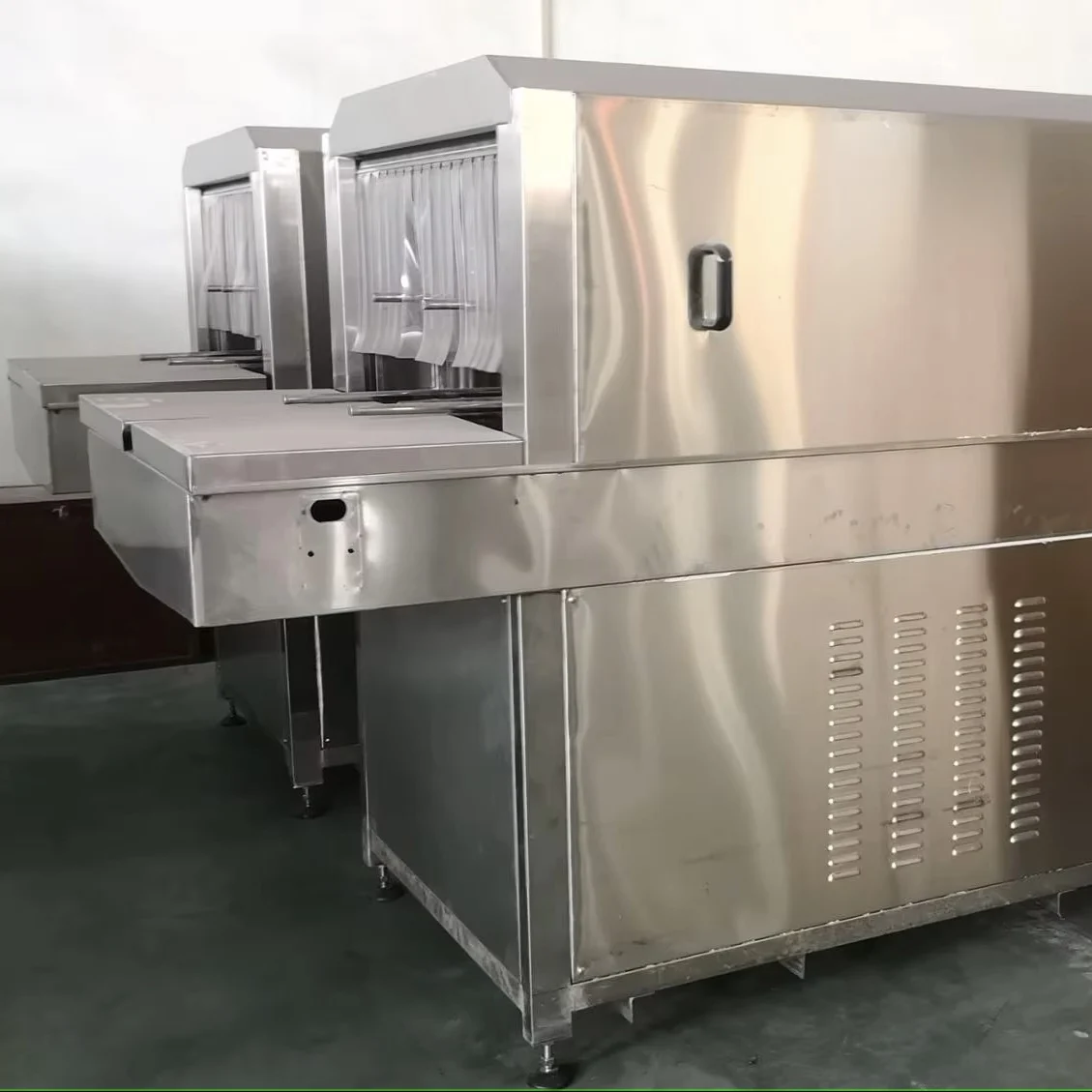

- Removable Housing: The main exterior panel is easily removable, providing direct access to internal components for quick repairs.

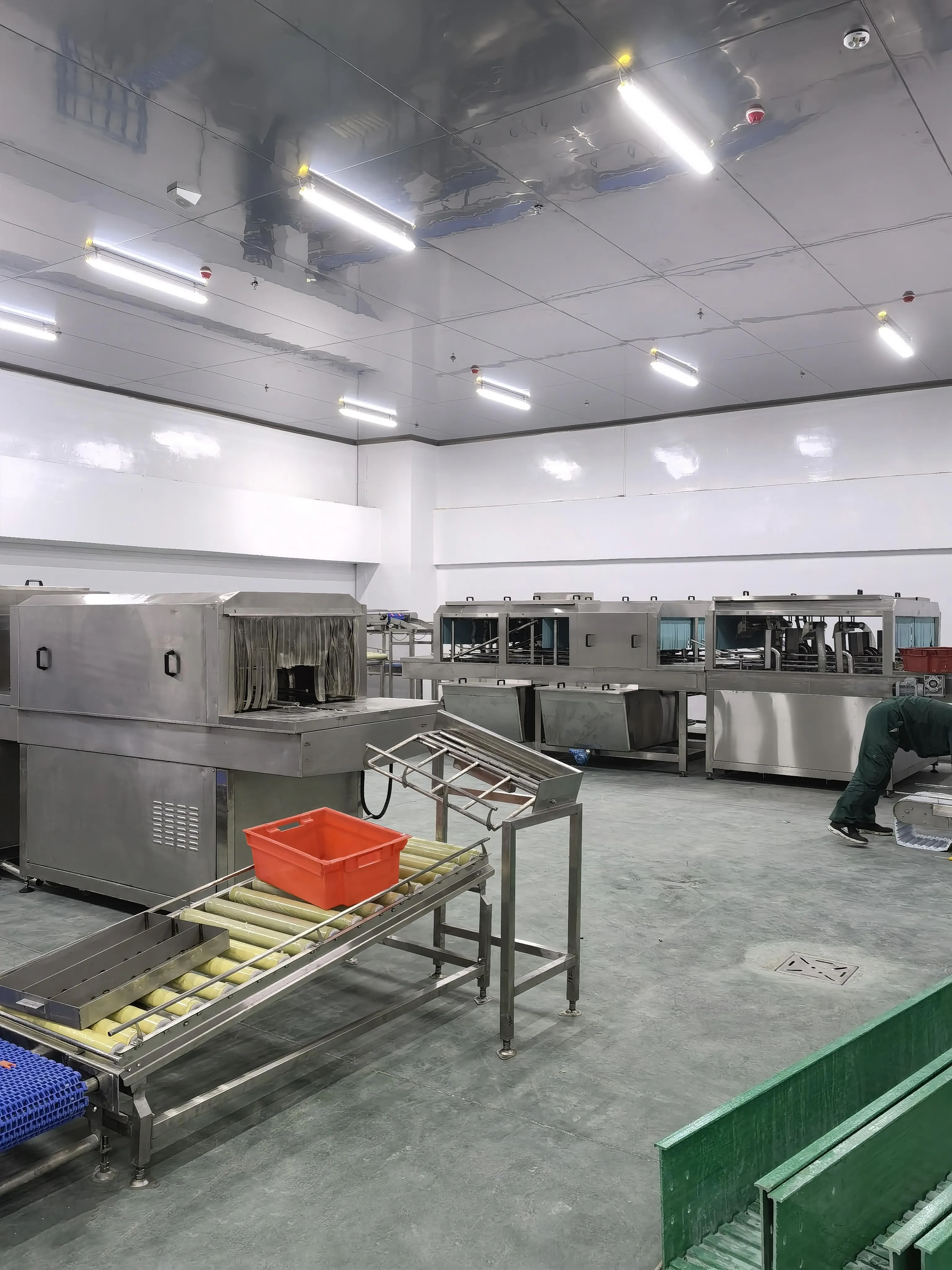

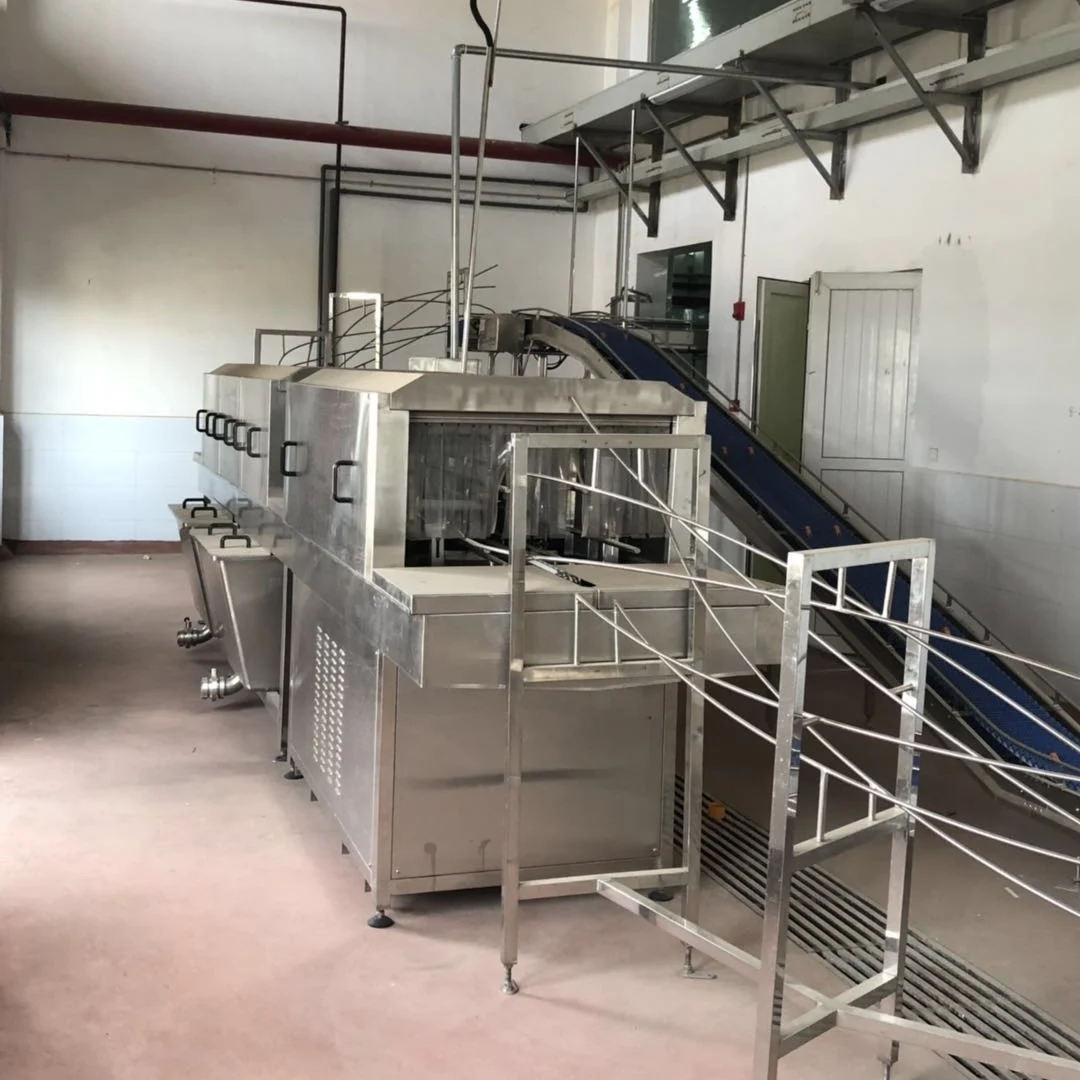

- Designed to replace labor-intensive manual cleaning, the machine is an ideal solution for meat, seafood and vegetable processing plants. It has high production capacity and low energy consumption as well as long service life, ensuring a high return on investment for your factory.
Properties
Core industry attributes
Application scopefood industry
Warranty1 year
core selling pointHigh productivity

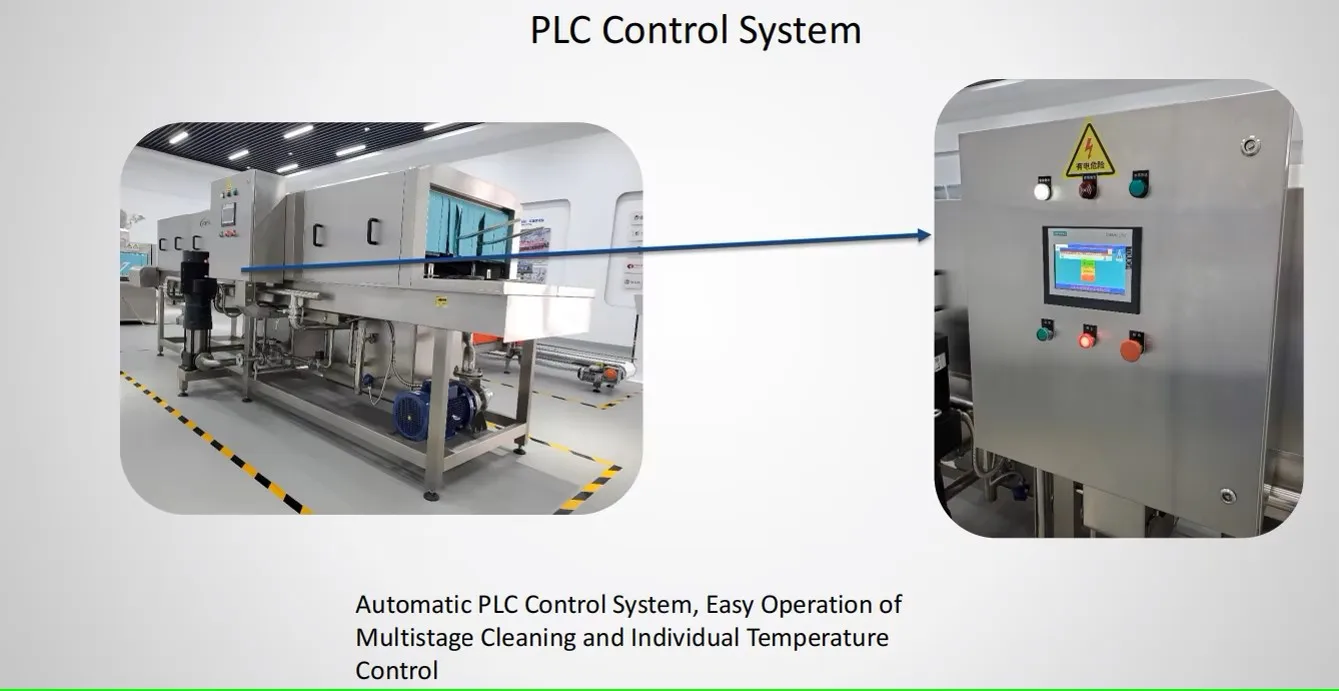

core componentsMotors, pumps, PLC
Mechanical test reportAvailable
Factory video inspectionAvailable
Important attributes
Application scope
food industry
Capacity
1000bp/h
Mechanical test report
Available
core selling point
High productivity
core components
Motors, pumps, PLC
Warranty
1 year
Factory video inspection
Available
Origin
Shandong, China
weight
500
brand name
OSE
Voltage
220V/380V
Dimensions (length*width*height)
500*100*200
Conveyor motor
RV63-80-0.37-6 level 1 set

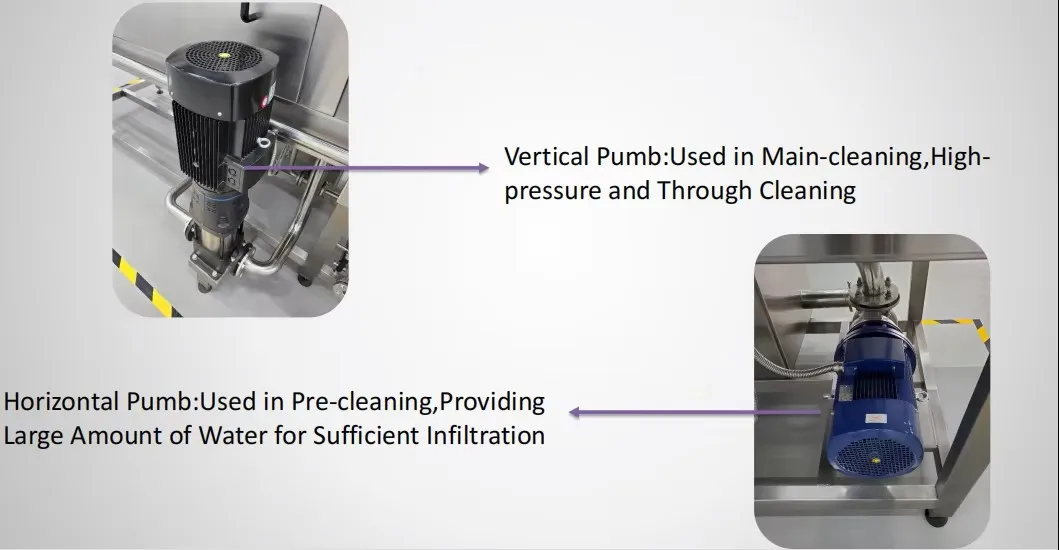

Prewash pump
DZA(left)80-65-160/5.5KW
Main wash vertical multi-stage pump
50CDLF-20-70-7.5kw Flow 20 Lift 79 1 unit
water supply pressure
2-3MPa
water consumption
30 liters/minute

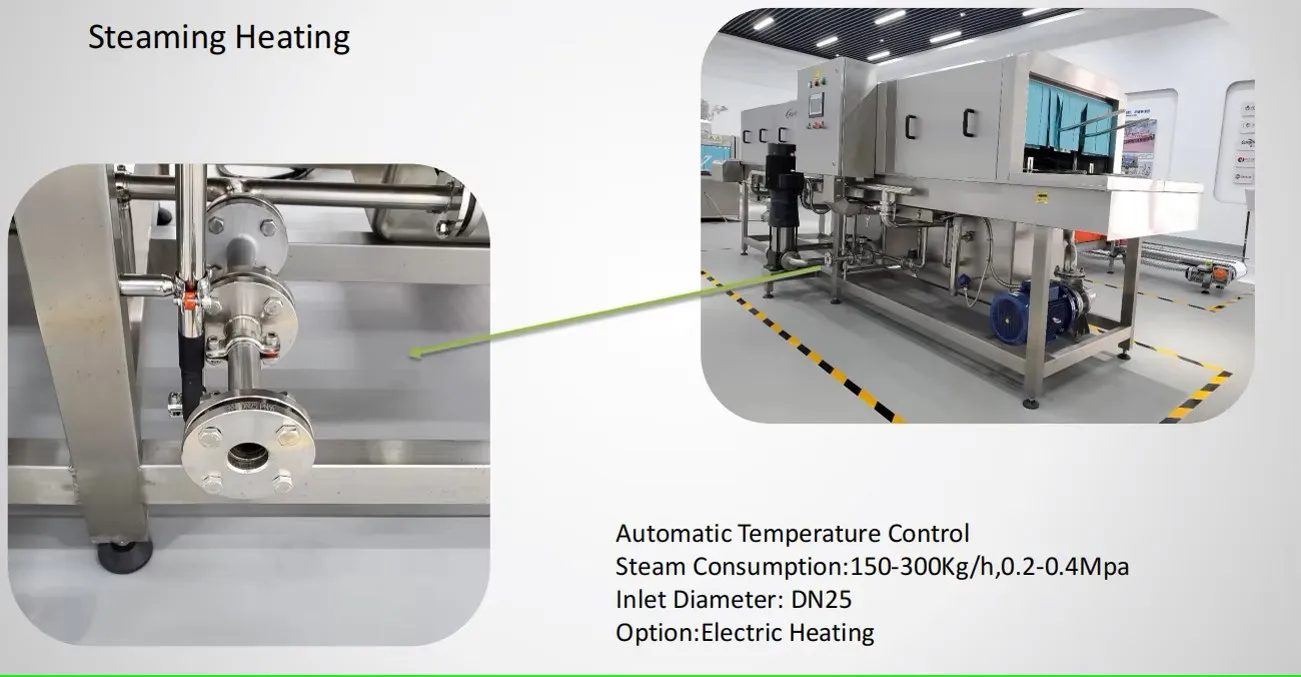

Steam supply pressure
0.4 MPa
total power
13.37kW
Water tank capacity
0.6 cubic meters
Steam volume
180 degrees 36 kg steam
Machine material
Stainless steel
Packaging and shipping
sales unit
single item
Individual package size
200X200X200 cm
Gross weight of a single product
500.0 kg
