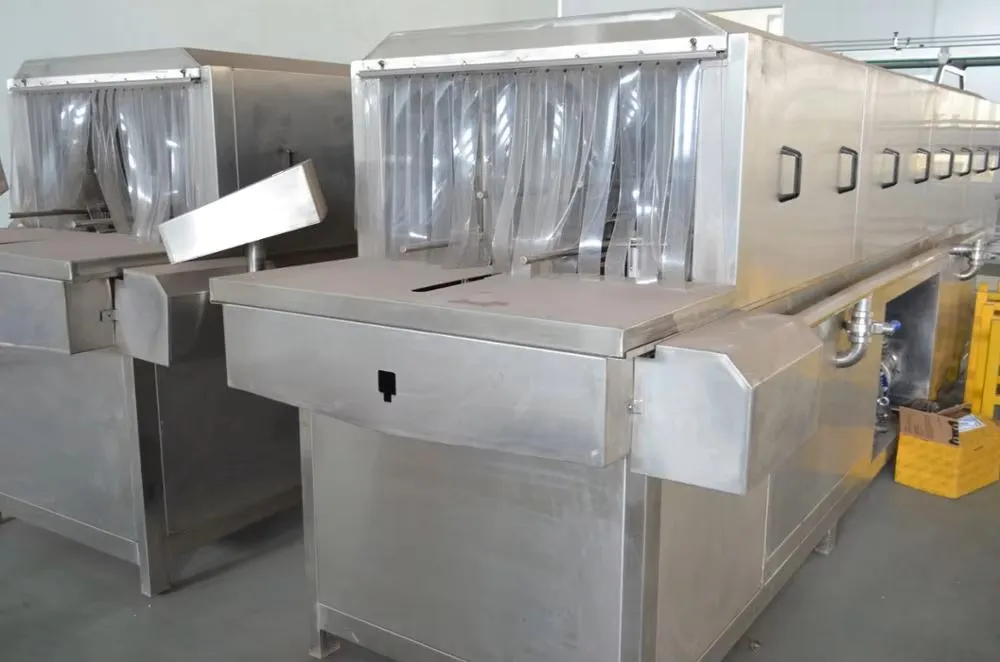

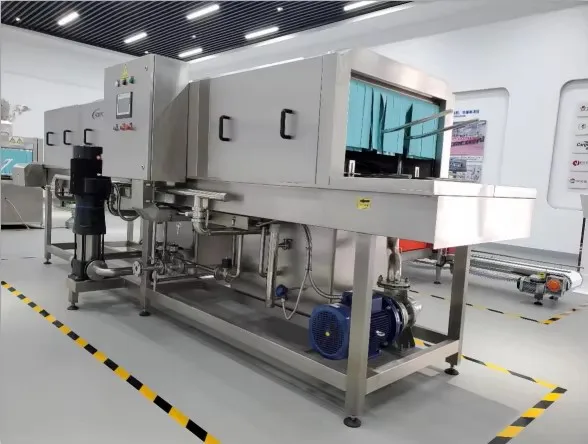

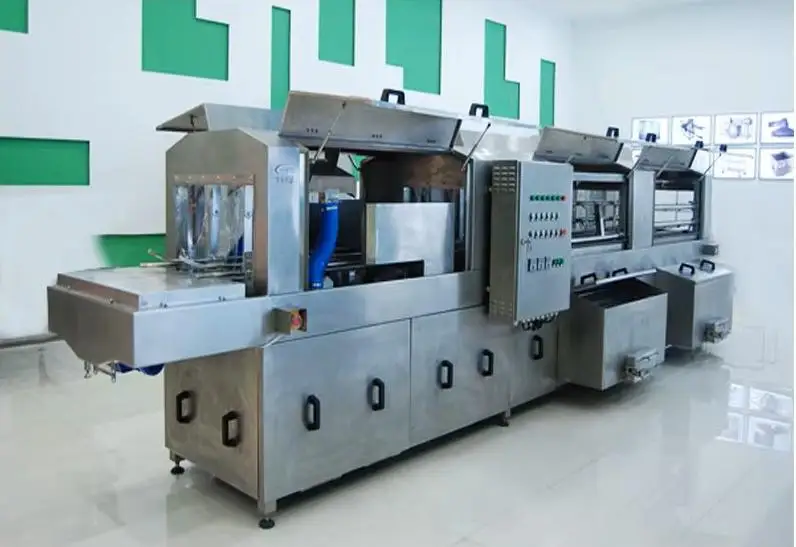

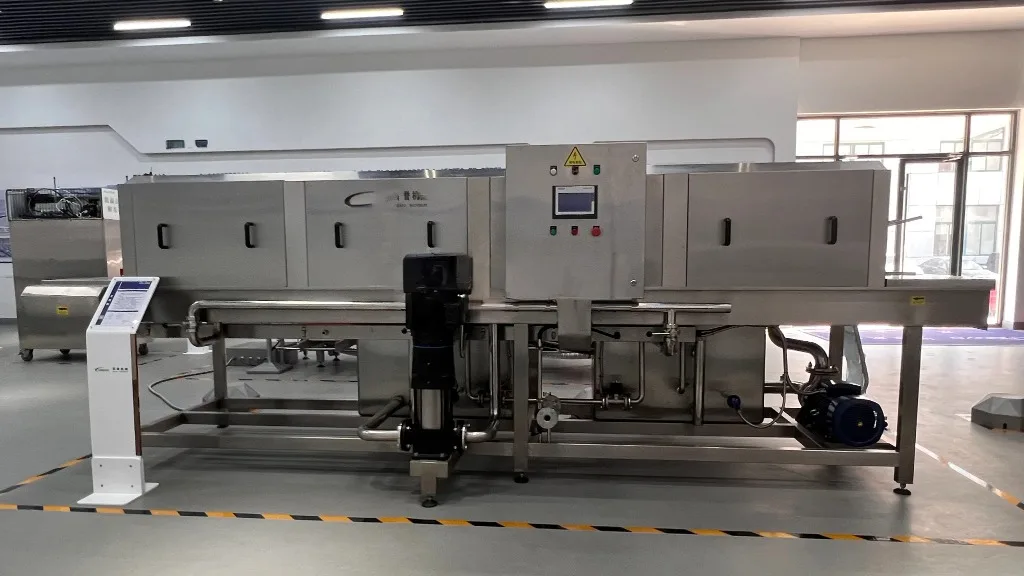

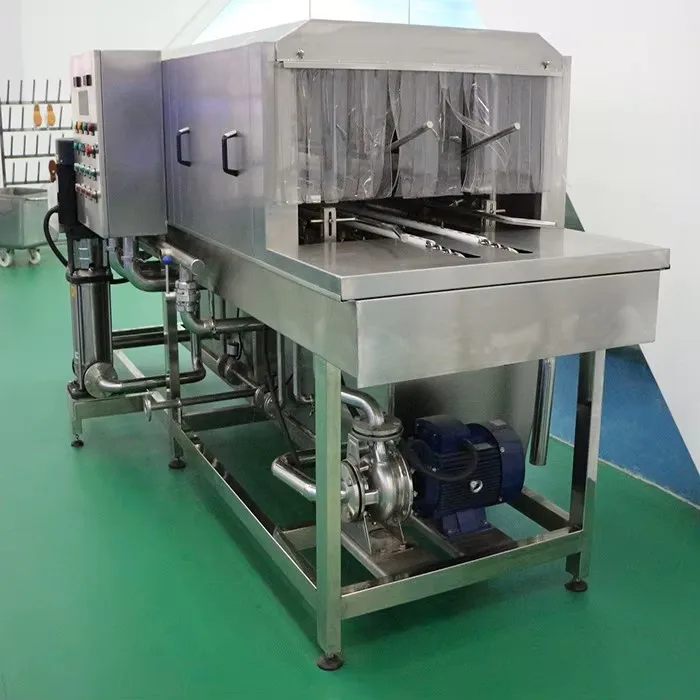

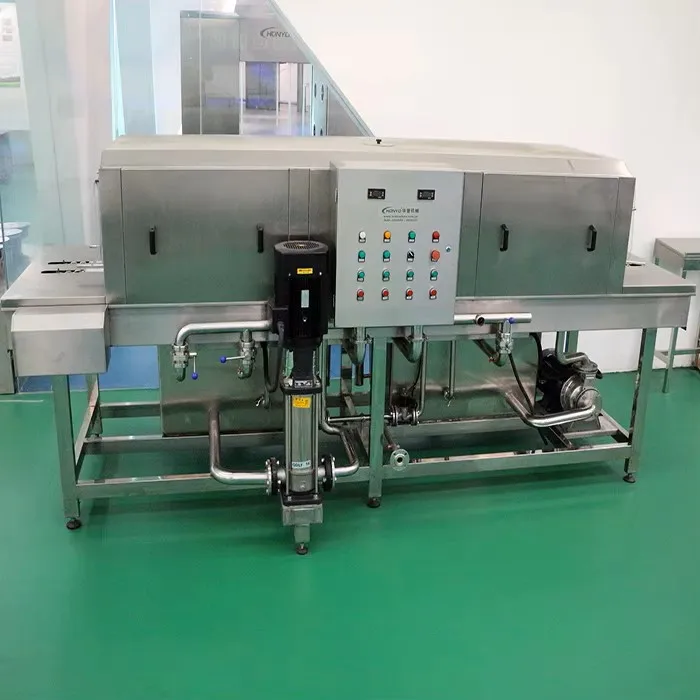

Industrial Automatic Crate Cleaner for Food Industry High Pressure Tray Basket Cleaner
US$20,000
1-1 set
US$19,000
≥2 sets
Model
Product features
Properties
pictures
video
Product features
- Water inlet pipe: 304 decorative round pipe φ50, with DN40 monofilament head.
- Air intake pipe: 304 industrial round pipe DN25.
- Top guardrail: automatically adjusts height.

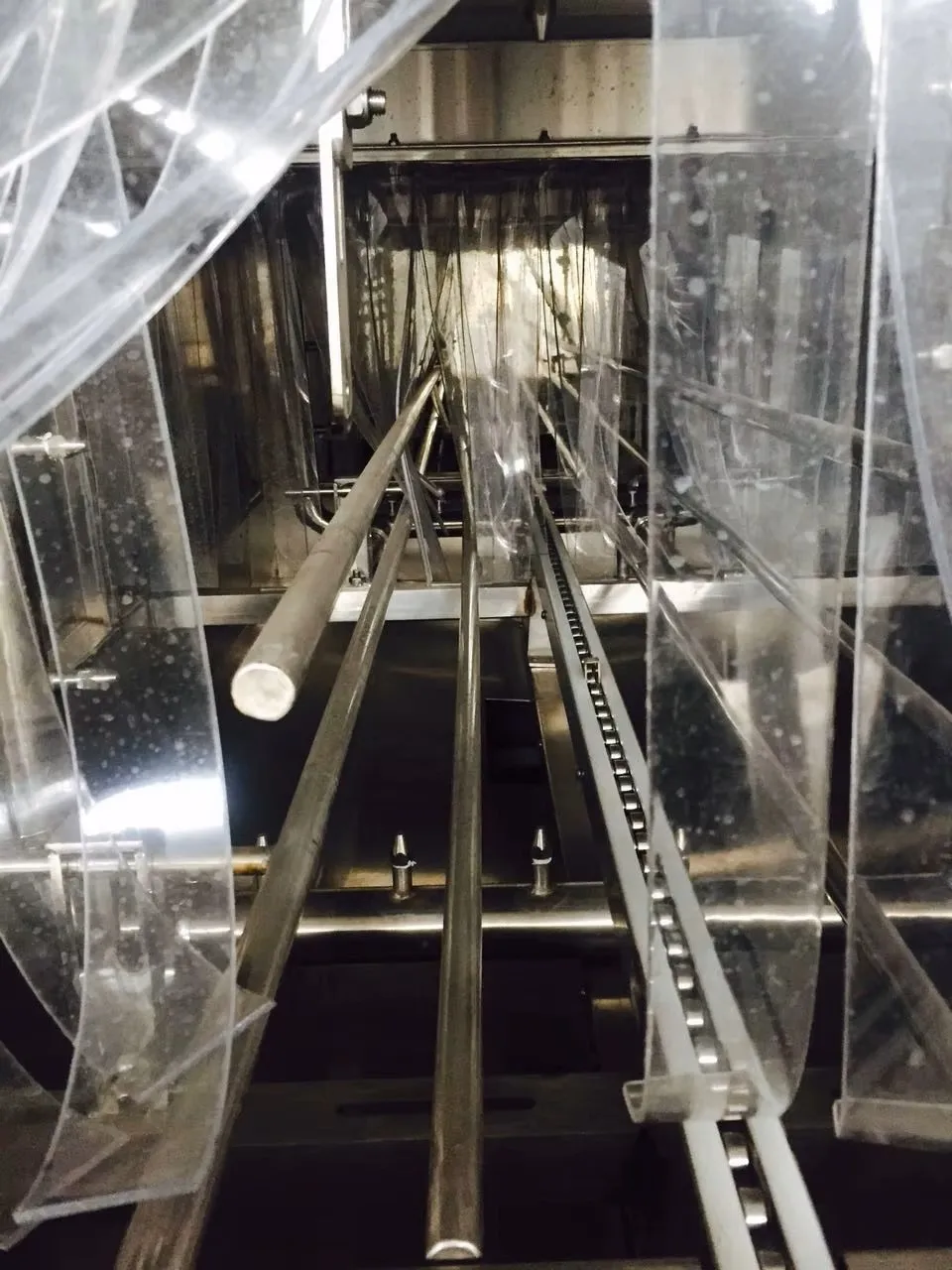

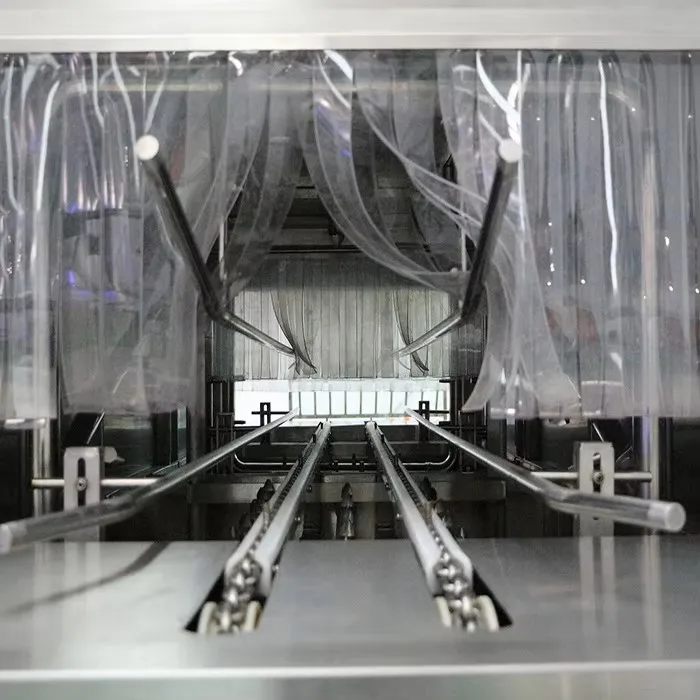

- Side Rails: Height and width can be adjusted to accommodate different size boards.
- Core features: Stainless steel industrial crate washing machine for industrial factories, product features, cleaning process, related products.

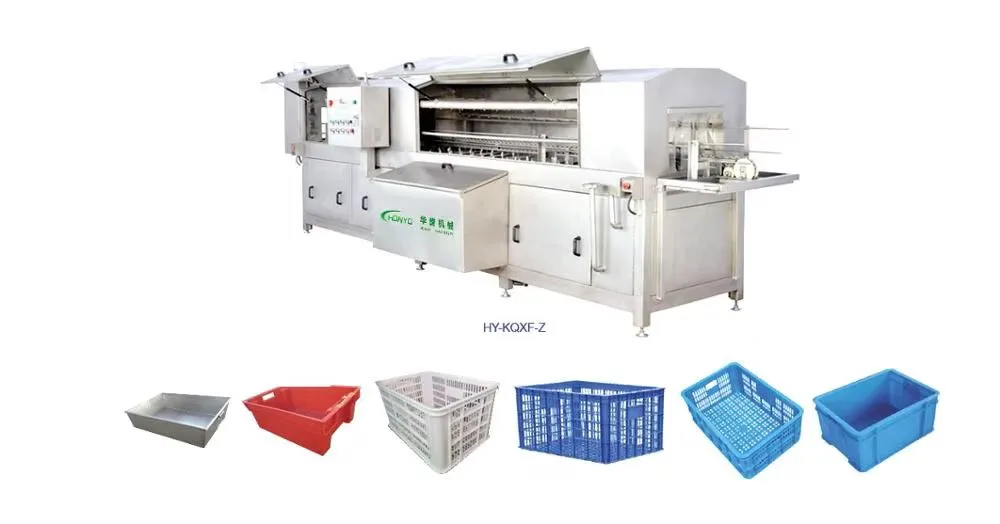

- Crate cleaning machine/box cleaning machine is suitable for cleaning turnover crates (pallets) in various food processing plants, including meat, aquatic products, and vegetables. Completely made of SUS304 stainless steel, it integrates hot and cold water cleaning and air drying, replacing the traditional manual cleaning operation and meeting the large-volume crate cleaning requirements of various food companies. The turnover basket cleaning machine/box cleaning machine has reliable performance, stable operation, simple installation and maintenance, high production efficiency, good cleaning effect, low energy consumption and long service life.
- 11. The main components are removable for easy maintenance. 12. The separate pipeline design for dirty water and clean water enables the best economic utilization of the water in the circulating water tank.
- 1. The basket washing machine solves the problems of high labor costs, water waste and low turnover basket washing efficiency in food processing plants. It is used to clean food baskets, boxes, stainless steel plates, and dishes, providing complete, one-step cleaning, sterilization, and disinfection functions. Basket cleaning machines use ambient temperature water washing, clean water rinsing and steam sterilization. Baskets (stainless steel plates) and other cleaning equipment enter the machine through the tunnel at the input for hot water main cleaning, ambient temperature water washing, and clean water rinsing to complete the cleaning process.
- 2. The boxes to be cleaned are fed into the machine through the conveyor belt. In the first wash, hot water of 38°C-45°C (adjustable temperature) is pumped to the three-dimensional spray pipe through a circulating water pump. Then, 48 removable spray heads provide three-dimensional flushing and cleaning of the box. Flush water can be discharged into the sewage network or filtered for recycling. In the second cleaning stage, hot water of 75°C-82°C (adjustable temperature) is pumped to the three-dimensionally arranged spray pipes through a sanitary-grade circulating water pump. The water then flows through 26 fixed nozzles, rinsing and cleaning the cabinet in three dimensions. The flushing water is filtered and then circulated into the circulating water tank. In the third flushing stage, spray clean water on the cabinet or around the iron plate. The water then flows into the second circulating water tank for reuse.
Properties
Core industry attributes
Key machineFruit and vegetable juicer, meat grinder, fruit and vegetable peeling machine, sausage filling machine
product typeseafood
Voltage380V, 220V
degree of automationautomatic
OriginShandong, China
power13.37kw
Important attributes
product type
seafood
degree of automation
automatic
Key machine
Fruit and vegetable juicer, meat grinder, fruit and vegetable peeling machine, sausage filling machine
Voltage
380V, 220V
Capacity
500
Origin
Shandong, China
Weight (KG)
1000
brand name
OSE
Dimensions (length*width*height)
3800*1800*1910
power
13.37kw
Conveyor motor
RV63-80-0.37-6 Level 1 set
Prewash pump
DZA(S)80-65-160/5.5KW
Main wash vertical multi-stage pump
50CDLF-20-70-7.5kw flow 20 heads 79 1 set
water supply pressure
2-3Mpa
water consumption
30 liters/minute
Steam supply pressure
0.4Mpa
total power
13.37kw
Water tank volume
0.6 cubic meters
Steam volume
36kg steam at 180 degrees
Machine materials
Stainless steel
Packaging and shipping
sales unit
single item
Individual package size
200X200X200 cm
Gross weight of a single product
500.0 kg
