Meat processing equipment
Industrial meat cutting and deboning conveyor lines for pork, beef and lamb processing
US$180,000
1-1 set
US$160,000
≥2 sets
Power (W)
Customization options
- logo/graphics customization process
Product features
Properties
pictures
video
Product features

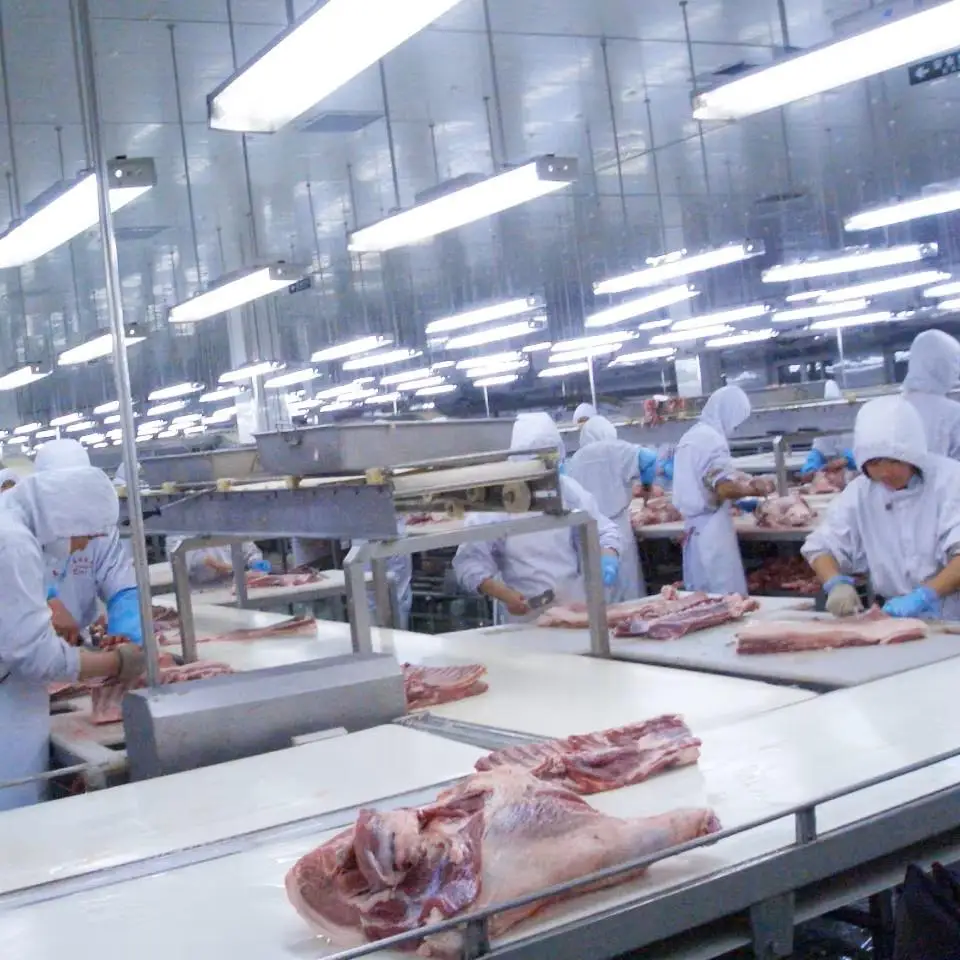

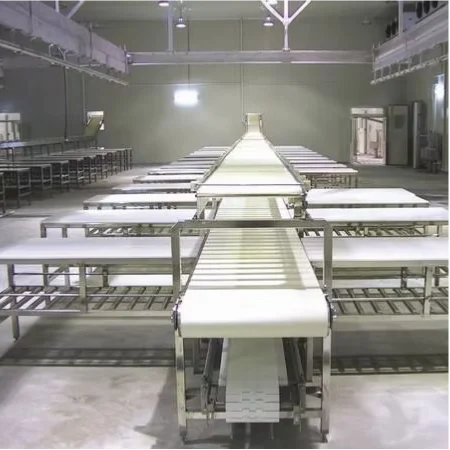

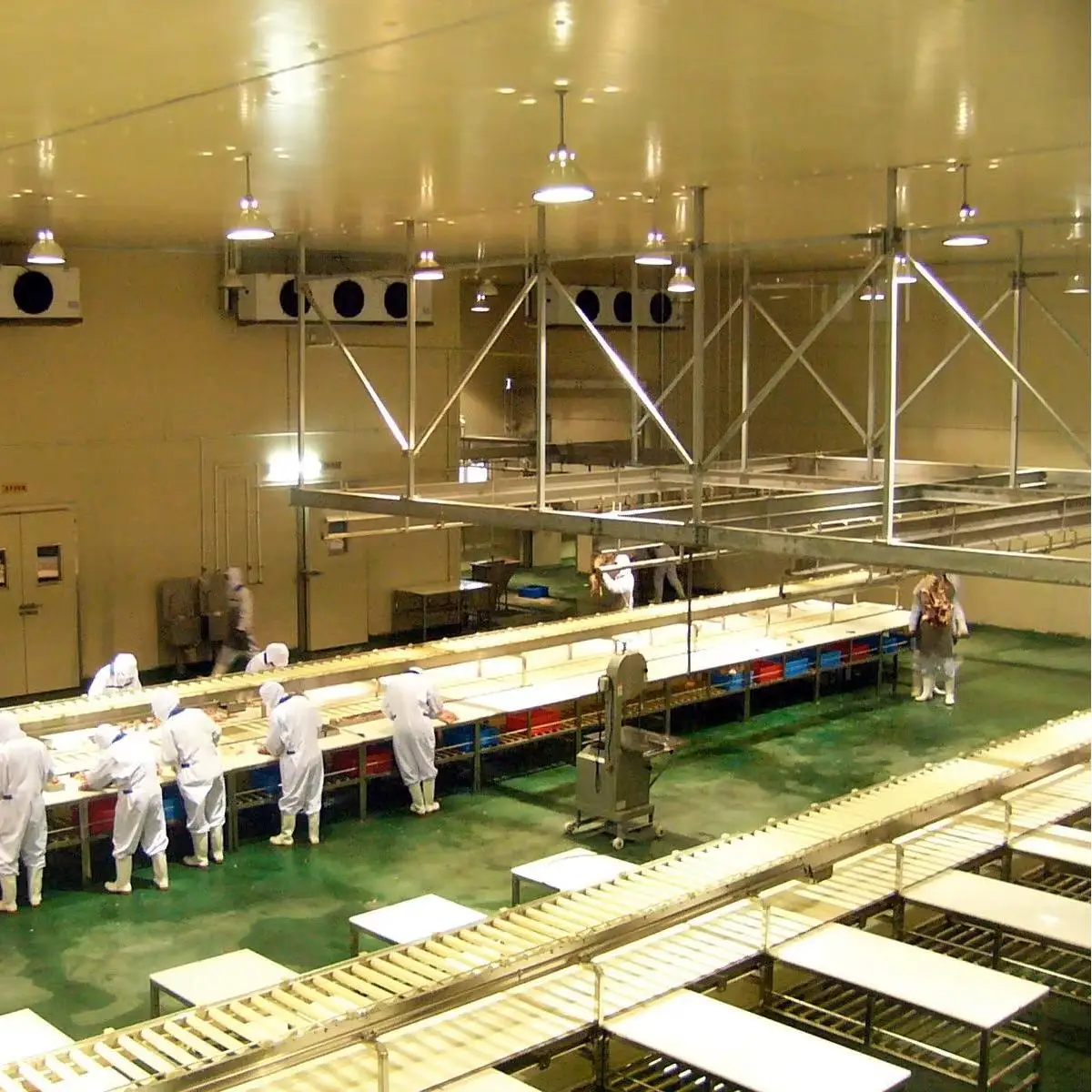

- This stainless steel conveyor system is designed for the efficient cutting of pork, beef and lamb in slaughterhouses and meat processing plants. It supports carcass breaking down, trimming and transport tasks to improve workflow and hygiene standards. Available in single, double or triple layer structures: Single layer: raw material transportation. Double-layer design: the upper layer is for raw materials and the lower layer is for waste box transportation. Three-layer structure: upper cage, middle raw material warehouse, and lower waste/heavy box transportation. We also offer customized solutions for packaging and sorting lines, making the system versatile enough to be used across vegetables, seafood and the wider food industry.
- Pre-cutting area: The unloader significantly improves unloading efficiency and convenience, while also reducing the impact on the cutting line when the pig body falls. Diagonal braces are added to the first pre-cut line to enhance structural stability and effectively prevent the frame from deforming when the pig half falls. The drive end of the raw meat conveyor line is equipped with a spray system designed to clean internal residues, thus ensuring improved hygiene throughout the process. To prevent meat scraps and spatter from falling to the floor at the connection between the circular saw and the conveyor belt, we installed a removable collection tray. The tray is easy to remove and clean, maintaining cleanliness and operational efficiency.

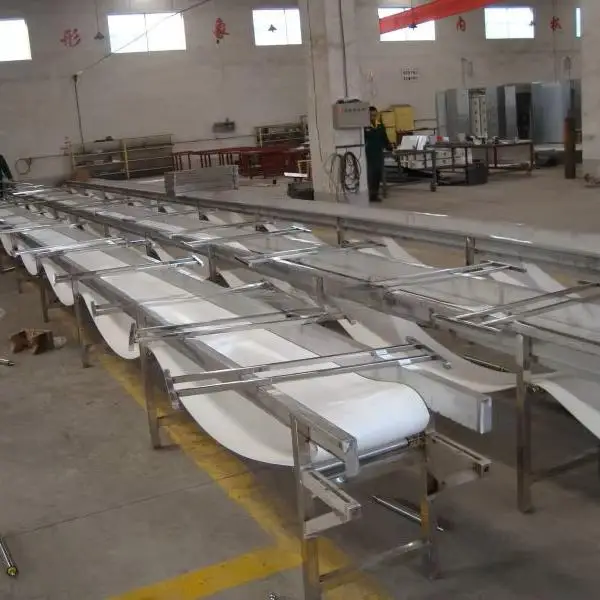

- Conveyor belt: The raw meat conveyor belt is designed to avoid contact with the main frame on both sides. Wear-resistant support strips are added at the bottom to reduce wear. This reduces traction resistance and increases the overall life of the equipment. During normal operation, the belt maintains a narrow opening; however, during cornering, the opening widens. This design allows for more effective spray cleaning and minimizes sanitary dead spots.
Properties
Core industry attributes
Application scopecattle
Warranty1 year
core selling pointHigh productivity
core componentsbearings, motors, pumps
Mechanical test reportAvailable
Factory video inspectionAvailable
Important attributes
Application scope
cattle
Capacity
600bp/h, 800bp/h, 1000bp/h
Mechanical test report
Available
core selling point
High productivity
core components
bearings, motors, pumps
Warranty
1 year
Factory video inspection
Available
Origin
Shandong, China
weight
500
brand name
One-Stop
Voltage
330 volts
Dimensions (length*width*height)
6000*610*800mm
Product name
Bone removal and cutting lines
How to use
Beef, pig and poultry processing equipment machinery
Material
304 stainless steel
Function
Customized slaughtering line, automated factory
Capacity
Customized
Advantages
Simple operation and high efficiency
used for
livestock slaughterhouse
Installation
Engineer guidance
MOQ
1 set
Packaging and shipping
sales unit
single item
Individual package size
300X200X300 cm
Gross weight of a single product
500.0 kg
