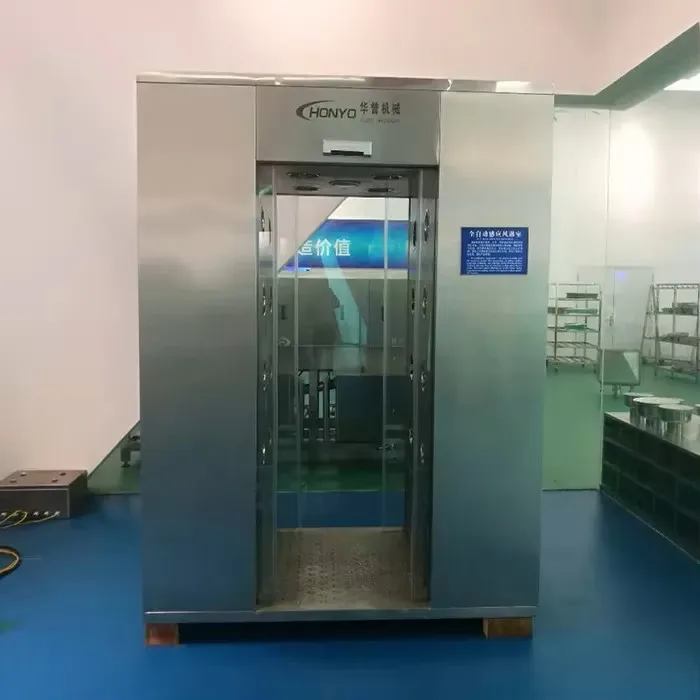

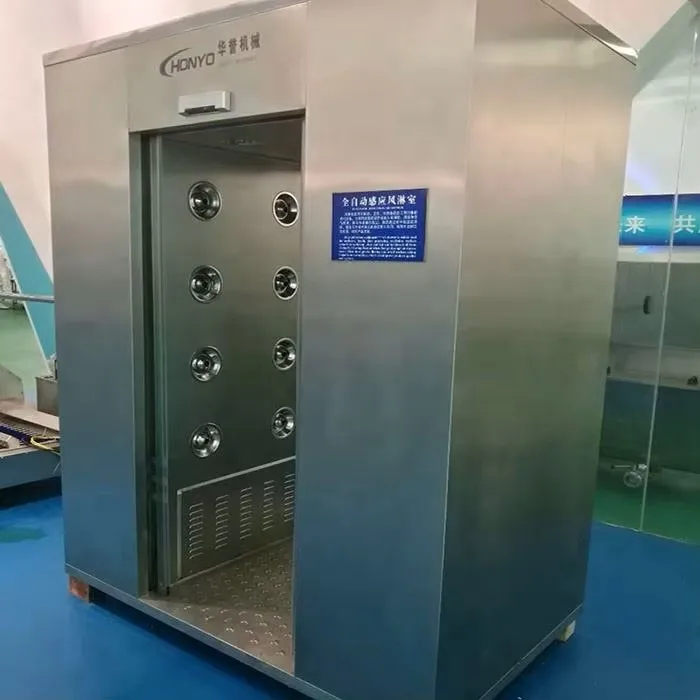

Modular air shower cleanroom applications for pork and slaughterhouses
US$5,500
1-1 set
US$5,000
≥2 sets
Model
Power (W)
Customization options
- Dimensions (length*width*height)
Product features
Properties
pictures
video
Product features

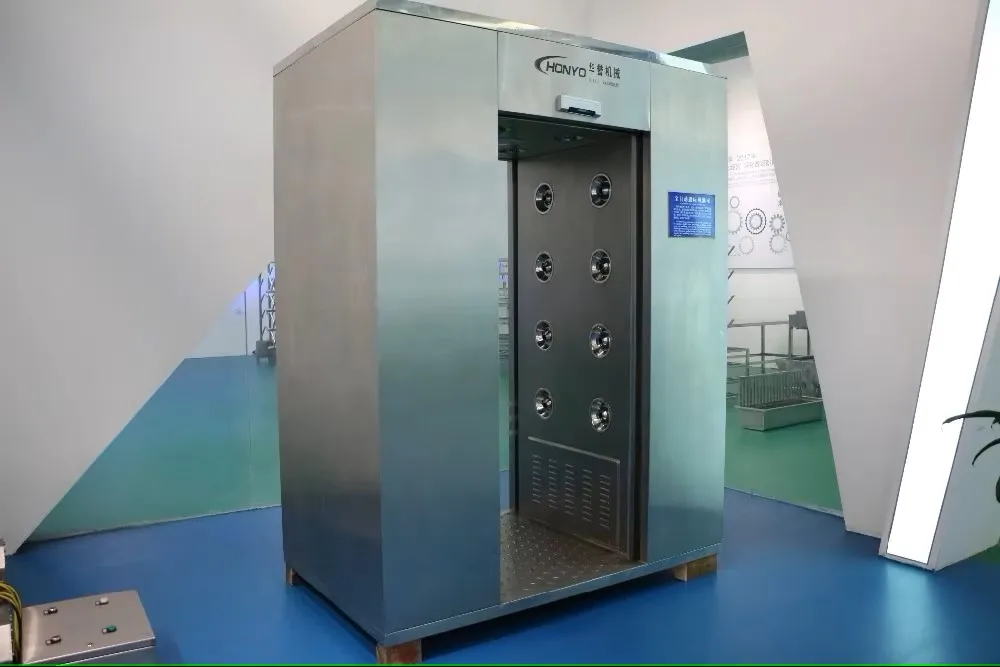

- A clean room air shower is a widely used local purification equipment that is usually installed between clean room and non-clean room environments.
- For equipment, we provide 1 year warranty. If there are quality problems during this period, we will take responsibility and bear the cost.
- No, the design is free. Our engineers will design the slaughterhouse or slaughter line according to the customer's requirements and land conditions.
- Yes we can. All major equipment is manufactured by us. This can result in cost savings for customers.
- Core features: product highlights, detailed close-ups, scene diagrams, operating procedures, about suppliers, slaughtering equipment*cold storage and heat insulation panels.
- This process effectively prevents or minimizes the entry of contaminants into clean areas. The entrance and exit of the air shower are equipped with electronic interlocking doors that act like airlocks to prevent unpurified air from seeping into the clean area.
- Air showers are widely used in various industries, including microelectronics, optoelectronics, semiconductors, pharmaceuticals, food processing, chemicals, aerospace, automotive manufacturing, printing and laboratory research, in environments ranging from dust-free workshops to standard production areas and facilities with graded cleanliness.
- When transitioning from a low cleanliness room to a high cleanliness room, dust particles larger than 0.3 microns in various parts of the human body are removed to prevent contaminants from being brought into the clean room.
- In addition, the air shower room can also play the role of air flow buffer. Since opening the door will inevitably cause air flow, the air shower can effectively limit this air flow within it, thus successfully reducing the risk of air pollution caused by air flow.

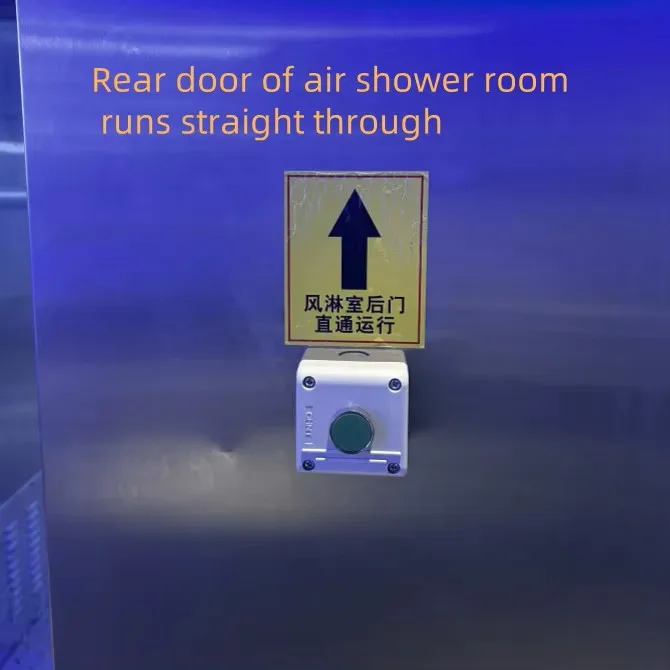

- When an employee approaches the front door of the air shower, the infrared sensor is triggered and the front door opens automatically. After employees enter the air shower room, the front door automatically closes, the internal lighting starts, and the air shower cycle begins. After the air shower cycle is completed, the internal operations stop, the back door automatically opens, and employees can enter the clean workshop.
Properties
Core industry attributes
Application scopecattle
Warranty1 year
core selling pointLong service life
core componentsPLC, motor
Mechanical test reportAvailable
Factory video inspectionAvailable
Important attributes
Application scope
cattle
Capacity
600bp/h
Mechanical test report
Available
core selling point
Long service life
core components
PLC, motor
Warranty
1 year
Factory video inspection
Available
Origin
Shandong, China
weight
1000
brand name
OSE
Voltage
380
Dimensions (length*width*height)
2000*1800*2300 customized
Main material
0.8mm-thick 304 stainless steel sheet
power
750 watts/380 volts
Filtration efficiency
The size is 0.3 microns, and the removal rate is ≥99.99%.
Noise level
≤65dB
fan
High static pressure, large air volume
automatic door
Using infrared sensors imported from Japan
Electrical system
With protection level ≥IP65
operating environment
~20°C to 40°C
illumination
Ceiling indoor lighting
cycle period
8~10 seconds (adjustable)

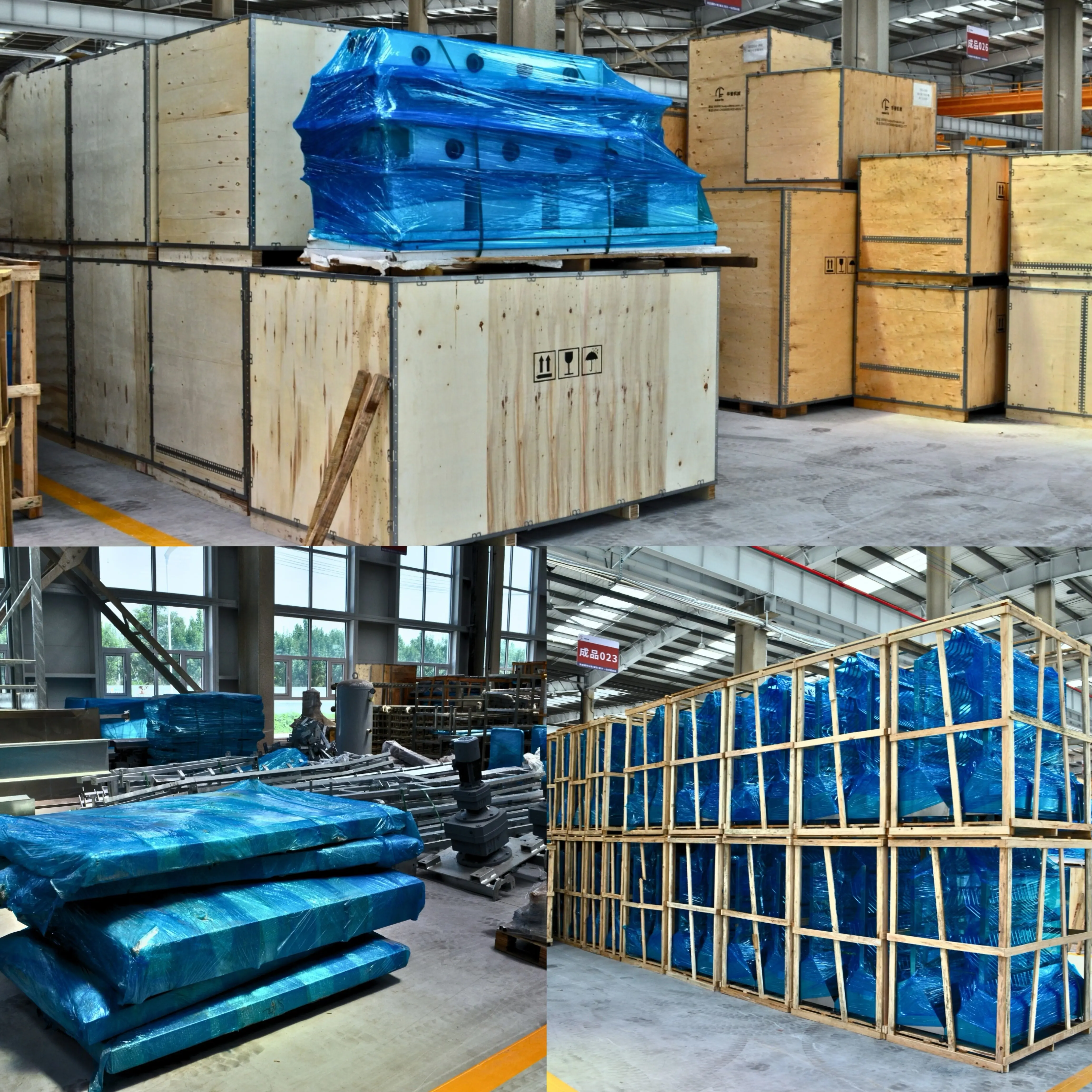

Packaging and shipping
sales unit
single item
Individual package size
500X500X500 cm
Gross weight of a single product
500.0 kg
