Small independent quick freezing IQF tunnel freezer for slaughterhouses

US$17,250
1-1 set
US$17,200
≥2 sets
Model

Customization options

  • Customized logo(Minimum order: 10 sets)
Get a quote
Ask an expert
Product features
  • Dimensions: 7300 × 600 × 800 mm.
  • Refrigerated:: R507.
  • Materials:: 35-40g/pc cut meat.
  • Voltage:: 440-380V, 3p.
  • Function:: * Quickly freeze seafood, poultry, vegetables, fruits, pasta, prepared meals and more. * You can also use a plate to freeze meat.
  • Design and production standards:: * Comply with HACCP requirements, leaving no dead ends to ensure food hygiene and safety * Ensure that the company obtains QS, HACCP certification, etc.

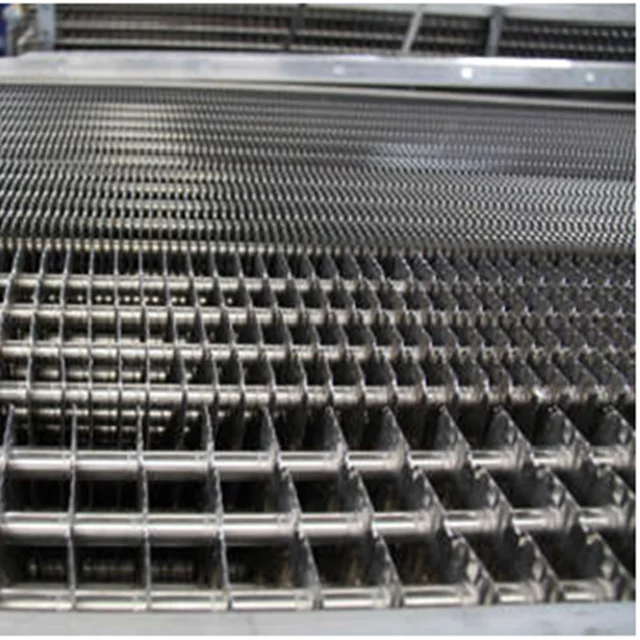

  • Structure:: * Frame, mesh belt bracket, air baffle and drive shaft are made of 304SUS * Can meet hygiene and durability requirements.
  • Design advantages:: * The steel frame keel structure is embedded inside the SUS base, which can effectively prevent the equipment from sinking under load; * Bilateral drainage ditches are conducive to frost and clean drainage.

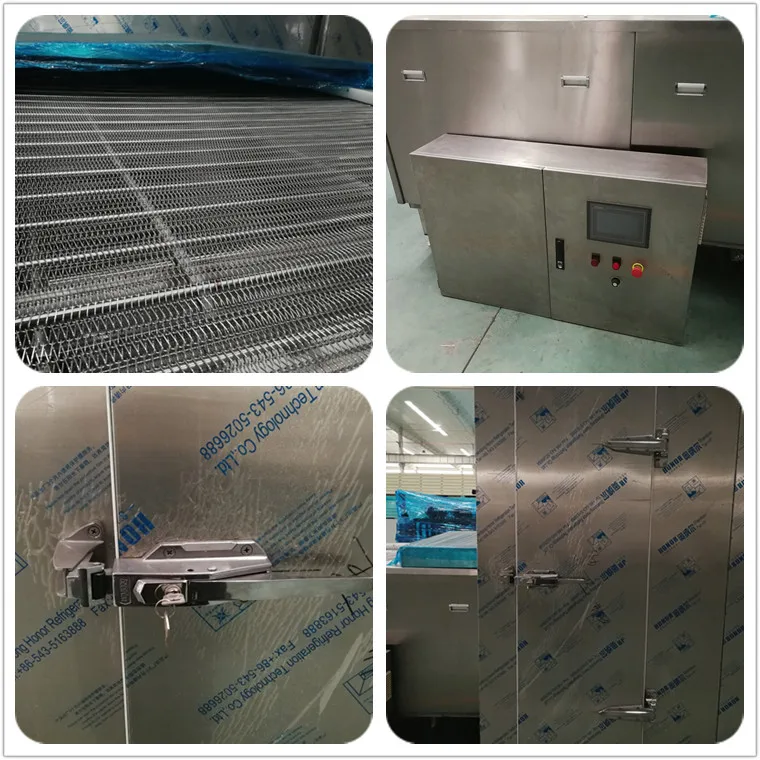

  • Electrical control system:: *PLC *Touch screen.

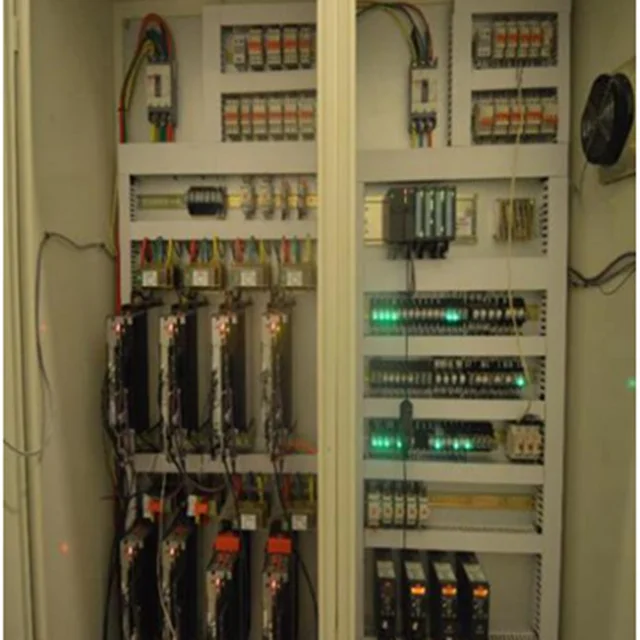

  • Electric control cabinet:: * Stainless steel waterproof design * Built-in heating system, which can effectively prevent electrical components from getting wet and ensure stability of use * Stepless frequency conversion speed regulation can be achieved to save energy consumption.
Properties

Core industry attributes

typetunnel freezer
core componentsPLC, bearings, motors, gears
core selling pointHigh productivity
Warranty1 year
Mechanical test reportAvailable
Factory video inspectionAvailable

Important attributes

type
tunnel freezer
Voltage
380V
Warranty
1 year
Mechanical test report
Available
Factory video inspection
Available
core components
PLC, bearings, motors, gears
core selling point
High productivity
Power (W)
2.2kw
Origin
Shandong, China
Refrigeration capacity
500kg/h
brand name
Onestop
Dimensions (length*width*height)
7300*600 * 800mm
Product name
Small independent quick-freezing IQF tunnel freezer for slaughterhouses
usage
Place the meat on the tray
Material
SUS304
suitable for
butcher knife
insulation
Polyurethane
refrigeration
R507
Advantages
Automatic processing
Function
frozen meat cuts
compressor
Imported brands
Provide after-sales service
Engineers can service machinery overseas

Packaging and shipping

sales unit
single item
Individual package size
500X500X500 cm
Gross weight of a single product
500.0 kg
